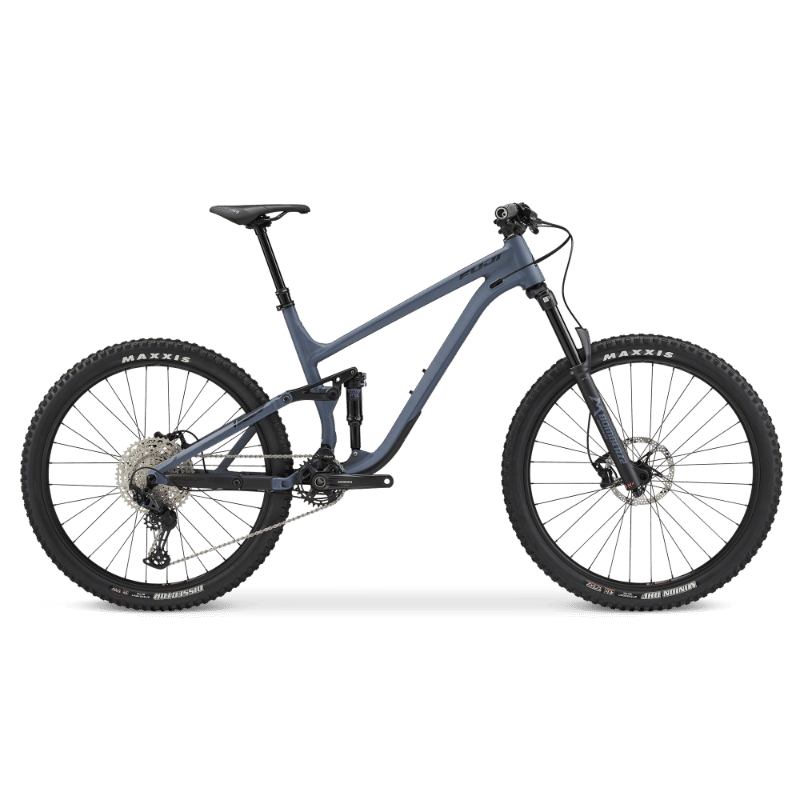

2022 Fuji Auric 27.5 geometry
Full frame geometry for the 2022 Fuji Auric 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 592 | 450 | 77 | 65 | 110 | 586.7 | 380 | 756 | 13 | 425.2 | 1185.8 | 37 |
| M | 601 | 470 | 76.5 | 65 | 120 | 614.3 | 420 | 756 | 13 | 425.2 | 1210 | 37 |
| L | 610 | 490 | 76 | 65 | 130 | 642 | 458 | 768 | 13 | 425.2 | 1234 | 37 |
| XL | 619 | 510 | 76 | 65 | 140 | 664.4 | 495 | 769 | 13 | 425.2 | 1258.5 | 37 |
All measurements in millimetres unless marked (°) for angles.
