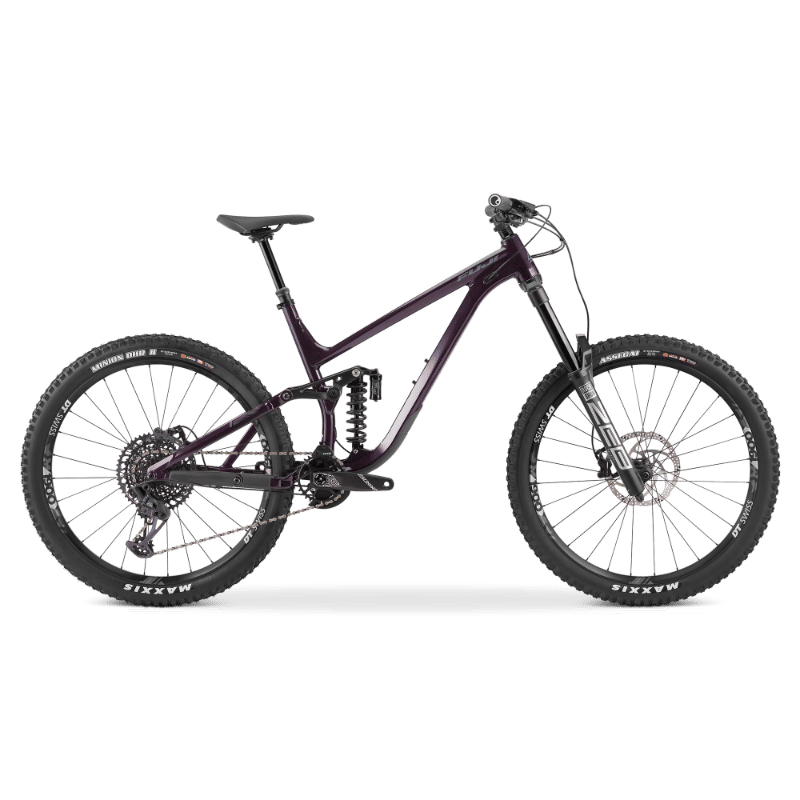

2022 Fuji Auric 27.5 LT geometry
Full frame geometry for the 2022 Fuji Auric 27.5 LT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 603.5 | 450 | 77.5 | 63.5 | 100 | 584 | 380 | 759 | 15 | 425.3 | 1210 | 37 |
| M | 612 | 470 | 77 | 63.5 | 110 | 611 | 420 | 769 | 15 | 425.3 | 1234 | 37 |
| L | 621 | 490 | 76.5 | 63.5 | 120 | 639 | 458 | 773 | 15 | 425.3 | 1259 | 37 |
| XL | 630 | 510 | 76.5 | 63.5 | 130 | 661 | 495 | 775 | 15 | 425.3 | 1283 | 37 |
All measurements in millimetres unless marked (°) for angles.
