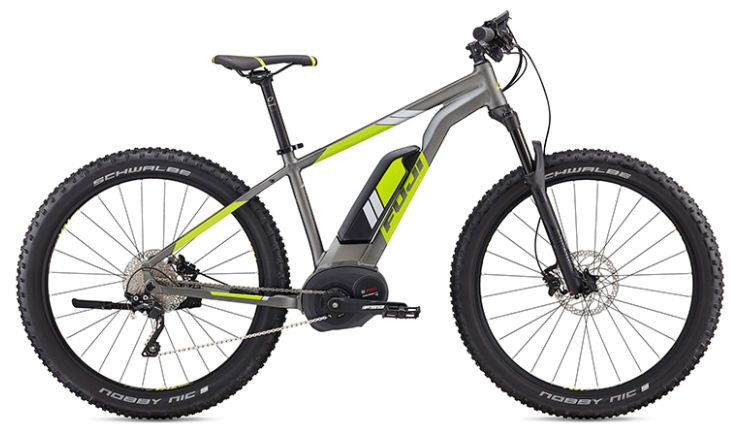

2017 Fuji Ambient geometry
Full frame geometry for the 2017 Fuji Ambient, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M/17 | 627 | 398 | 73 | 69.5 | 120 | 590 | 432 | 824 | 55 | 671 | 490 | 1156 | 51 |
| L/19 | 637 | 408 | 73 | 69.5 | 130 | 602 | 483 | 852 | 55 | 684 | 490 | 1168 | 51 |
| XL/21 | 637 | 435 | 73 | 69.5 | 130 | 630 | 533 | 871 | 55 | 712 | 490 | 1196 | 51 |
All measurements in millimetres unless marked (°) for angles.
