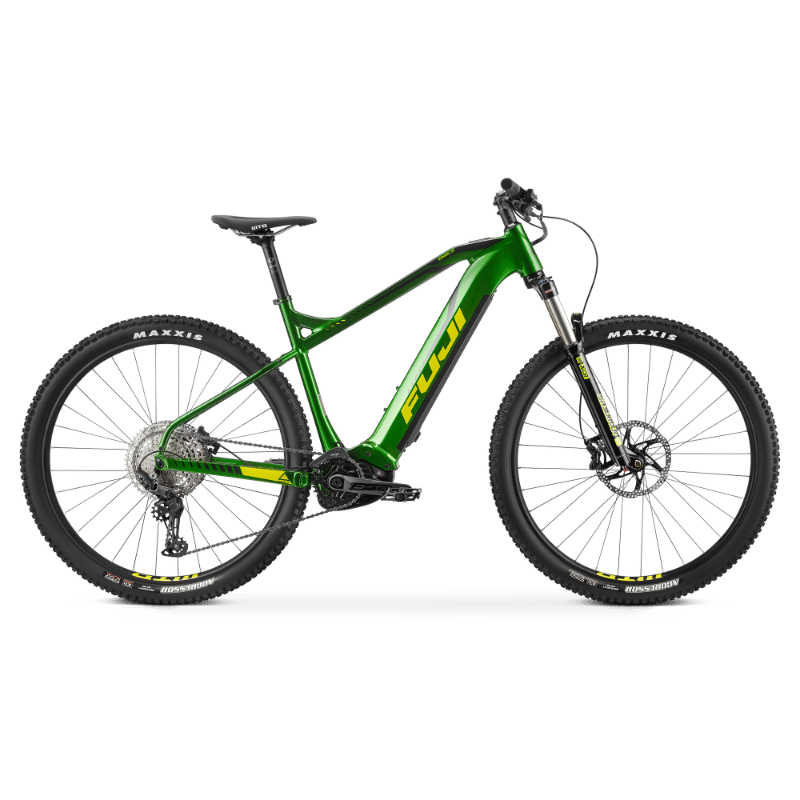

2022 Fuji Ambient EVO 29 geometry
Full frame geometry for the 2022 Fuji Ambient EVO 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 634 | 431 | 73.5 | 67.5 | 120 | 620 | 432 | 835 | 48 | 440 | 1169 | 42 |
| L | 639 | 450 | 73.5 | 67.5 | 125 | 640 | 483 | 835 | 48 | 440 | 1190 | 42 |
| XL | 643 | 479 | 73.5 | 67.5 | 130 | 670 | 533.4 | 861 | 48 | 440 | 1220 | 42 |
All measurements in millimetres unless marked (°) for angles.
