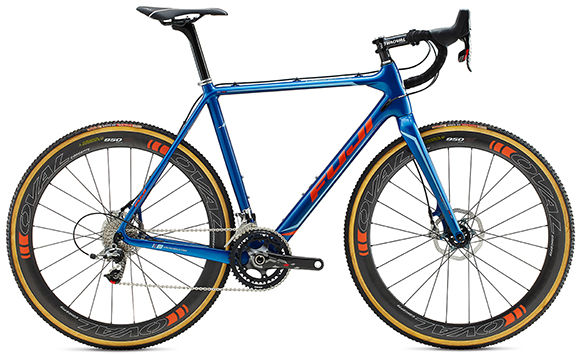

2015 Fuji Altamira CX Disc MKI geometry
Full frame geometry for the 2015 Fuji Altamira CX Disc MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 531 | 378 | 75 | 71 | 110 | 520 | 490 | 760 | 67 | 589 | 425 | 1005 | 45 | 73 |
| SM | 552 | 382 | 74.5 | 71.5 | 130 | 535 | 520 | 784 | 67 | 594 | 425 | 1010 | 45 | 70 |
| M | 563 | 373 | 73 | 72 | 140 | 545 | 540 | 798 | 67 | 585 | 425 | 1001 | 45 | 66 |
| ML | 582 | 382 | 73 | 72 | 160 | 560 | 560 | 815 | 67 | 600 | 425 | 1016 | 45 | 66 |
| L | 601 | 391 | 73 | 72 | 180 | 575 | 580 | 837 | 67 | 616 | 425 | 1032 | 45 | 66 |
| XL | 620 | 401 | 73 | 72 | 200 | 590 | 600 | 856 | 67 | 631 | 425 | 1047 | 45 | 66 |
All measurements in millimetres unless marked (°) for angles.
