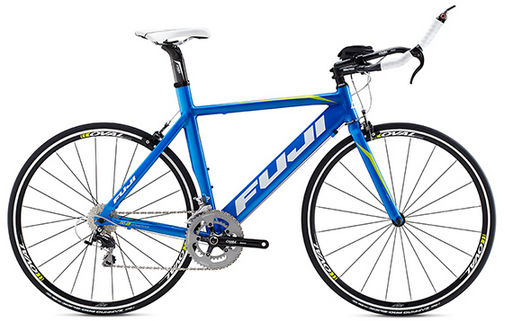

2014 Fuji Aloha geometry
Full frame geometry for the 2014 Fuji Aloha, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 506 | 407 | 78 | 72.5 | 105 | 505 | 490 | 735 | 68 | 597 | 390 | 977 | 45 | 58 |
| SM | 511 | 421 | 78 | 72.5 | 110 | 520 | 520 | 734 | 68 | 612 | 390 | 992 | 45 | 58 |
| M | 521 | 434 | 78 | 72.5 | 120 | 535 | 540 | 749 | 68 | 626 | 390 | 1006 | 45 | 58 |
| ML | 530 | 447 | 78 | 72.5 | 130 | 550 | 560 | 758 | 68 | 643 | 390 | 1023 | 45 | 58 |
| L | 549 | 457 | 78 | 72.5 | 150 | 565 | 580 | 776 | 68 | 659 | 390 | 1040 | 45 | 58 |
| XL | 568 | 469 | 78 | 72.5 | 170 | 580 | 610 | 796 | 68 | 677 | 390 | 1058 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
