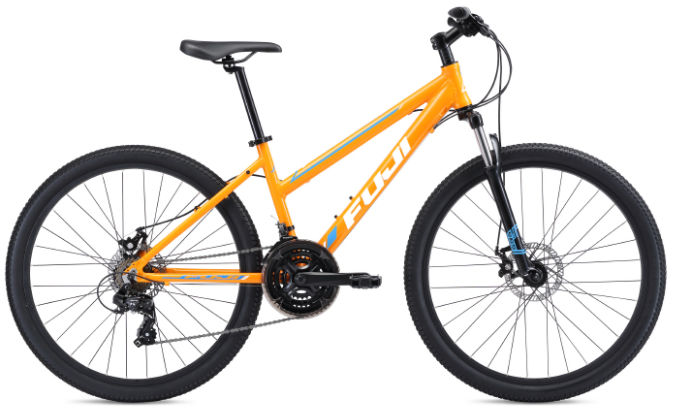

2017 Fuji Adventure 27.5 ST geometry
Full frame geometry for the 2017 Fuji Adventure 27.5 ST, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M/17 | 564 | 407 | 73 | 73 | 115 | 579 | 432 | 777 | 15 | 450 | 1086 | 46 |
| S/15 | 564 | 388 | 73 | 72 | 115 | 560 | 381 | 753 | 15 | 450 | 1067 | 46 |
| XS/13 | 564 | 380 | 73 | 72 | 115 | 552 | 330 | 728 | 15 | 450 | 1059 | 46 |
All measurements in millimetres unless marked (°) for angles.
