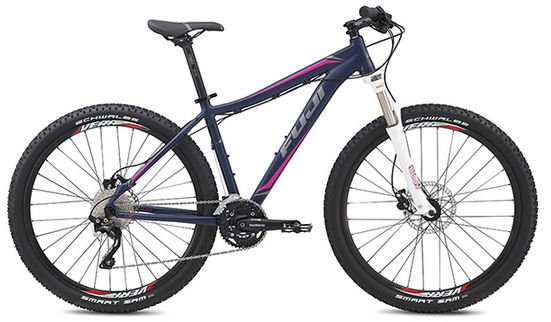

2015 Fuji Addy 27.5 MKI geometry
Full frame geometry for the 2015 Fuji Addy 27.5 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/13 | 578 | 358 | 73 | 70.5 | 110 | 535 | 330 | 686 | 44 | 594 | 430 | 1020 | 42 | 74 |
| S/15 | 583 | 368 | 73 | 70.5 | 115 | 546 | 381 | 743 | 44 | 605 | 430 | 1031 | 42 | 74 |
| SM/17 | 603 | 376 | 73 | 70.5 | 115 | 560 | 432 | 776 | 44 | 620 | 430 | 1046 | 42 | 74 |
| M/19 | 613 | 393 | 73 | 70.5 | 115 | 580 | 482 | 796 | 44 | 640 | 430 | 1066 | 42 | 74 |
All measurements in millimetres unless marked (°) for angles.
