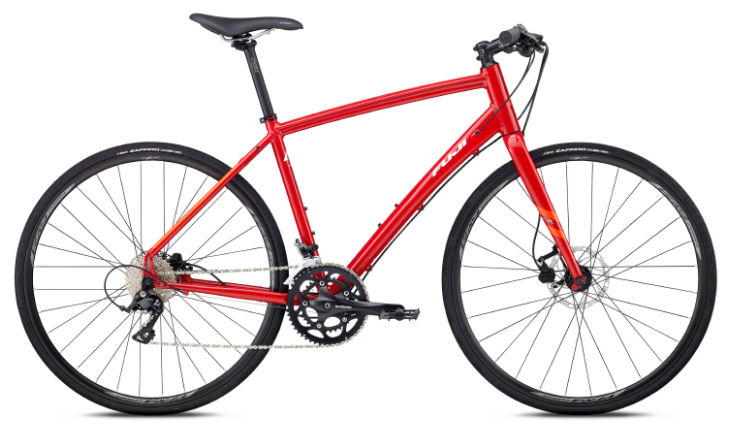

2017 Fuji Absolute geometry
Full frame geometry for the 2017 Fuji Absolute, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/15 | 528 | 389 | 75 | 69 | 120 | 533 | 381 | 731 | 60 | 440 | 1052 | 45 |
| M/17 | 555 | 388 | 74 | 70 | 145 | 549 | 432 | 768 | 60 | 440 | 1052 | 45 |
| L/19 | 583 | 395 | 73 | 71 | 170 | 575 | 483 | 806 | 60 | 440 | 1058 | 45 |
| XL/21 | 601 | 414 | 73 | 71 | 190 | 600 | 533 | 839 | 60 | 440 | 1084 | 45 |
| XXL/23 | 630 | 431 | 73 | 71 | 220 | 625 | 584 | 878 | 60 | 440 | 1110 | 45 |
All measurements in millimetres unless marked (°) for angles.
