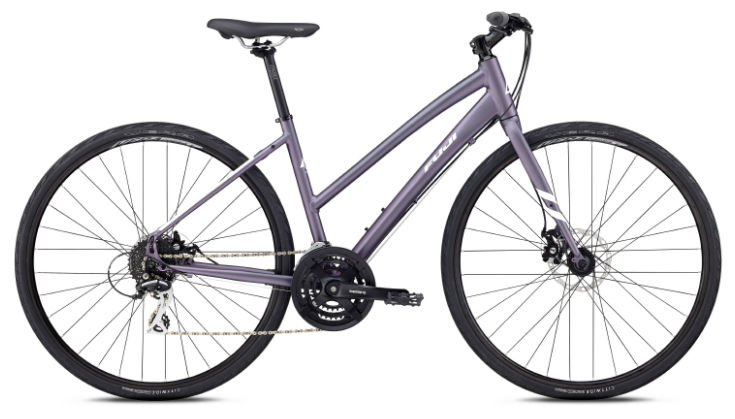

2017 Fuji Absolute ST geometry
Full frame geometry for the 2017 Fuji Absolute ST, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/15 | 553 | 367 | 75 | 69 | 135 | 519 | 381 | 664 | 60 | 448 | 1041 | 45 |
| M/17 | 571 | 372 | 74 | 70 | 150 | 539 | 432 | 681 | 60 | 448 | 1042 | 45 |
| L/19 | 594 | 372 | 73 | 71 | 170 | 555 | 483 | 697 | 60 | 448 | 1039 | 45 |
All measurements in millimetres unless marked (°) for angles.
