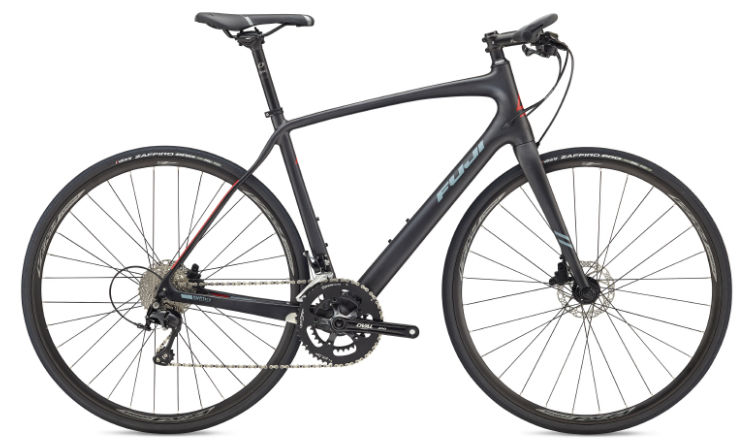

2017 Fuji Absolute Carbon geometry
Full frame geometry for the 2017 Fuji Absolute Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/46 | 506 | 369 | 75 | 71 | 100 | 505 | 420 | 708 | 69 | 415 | 984 | 52 | 62 |
| XS/49 | 531 | 368 | 74.5 | 71.5 | 125 | 515 | 450 | 736 | 69 | 415 | 987 | 52 | 59 |
| S/52 | 557 | 368 | 73.8 | 71.5 | 150 | 530 | 480 | 764 | 69 | 415 | 990 | 52 | 59 |
| M/54 | 582 | 373 | 73.5 | 73 | 170 | 545 | 500 | 788 | 69 | 415 | 984 | 43 | 59 |
| L/56 | 602 | 376 | 73 | 73 | 190 | 560 | 520 | 808 | 69 | 415 | 993 | 43 | 59 |
| XL/58 | 625 | 389 | 73 | 73 | 215 | 580 | 540 | 829 | 69 | 415 | 1013 | 43 | 59 |
| XXL/61 | 645 | 403 | 73 | 73 | 235 | 600 | 570 | 853 | 69 | 415 | 1033 | 43 | 59 |
All measurements in millimetres unless marked (°) for angles.
