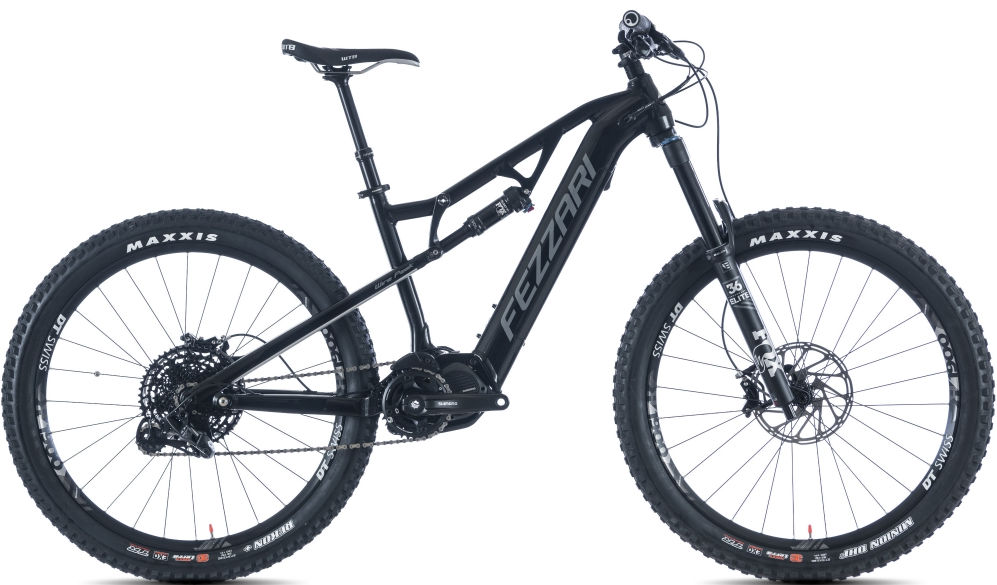

2019 Fezzari Wire Peak 27.5 geometry
Full frame geometry for the 2019 Fezzari Wire Peak 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 615 | 400 | 76 | 66 | 105 | 565 | 400 | 782 | 20 | 435 | 1169 | 42 |
| M | 620 | 425 | 76 | 66 | 105 | 591 | 420 | 784 | 20 | 435 | 1170 | 42 |
| L | 624 | 453 | 76 | 66 | 110 | 620 | 457 | 784 | 20 | 435 | 1199 | 42 |
| XL | 638 | 479 | 76 | 66 | 120 | 649 | 460 | 789 | 20 | 435 | 1230 | 42 |
All measurements in millimetres unless marked (°) for angles.
