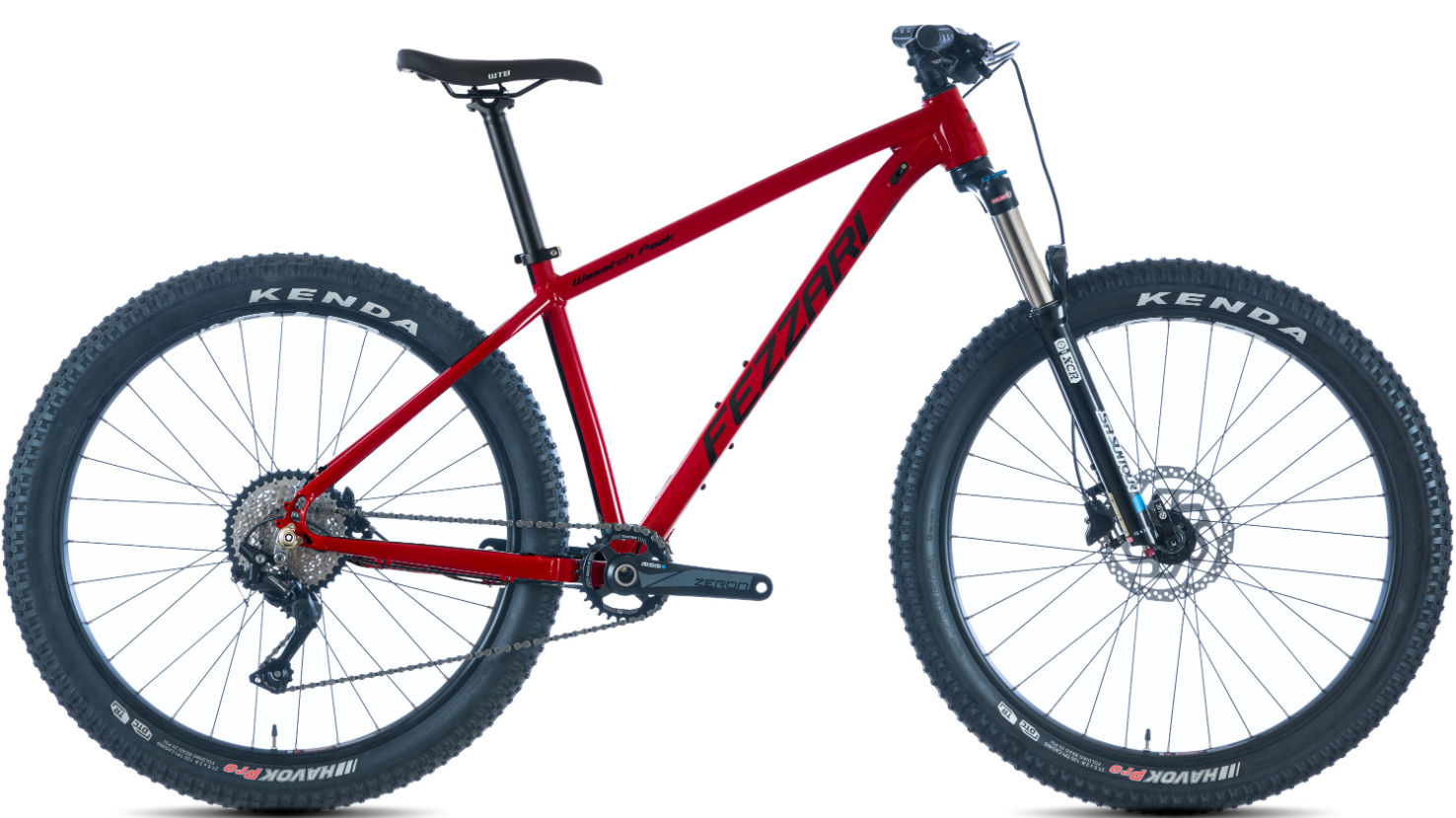

2019 Fezzari Wasatch Peak geometry
Full frame geometry for the 2019 Fezzari Wasatch Peak, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 613 | 418 | 75 | 68 | 95 | 582 | 430 | 754 | 60 | 435 | 1126 | 51 |
| S | 613 | 395 | 75 | 68 | 95 | 559 | 381 | 692 | 60 | 435 | 1103 | 51 |
| L | 627 | 441 | 75 | 68 | 110 | 609 | 483 | 803 | 60 | 435 | 1155 | 51 |
| XL | 641 | 462 | 75 | 68 | 125 | 643 | 533 | 840 | 60 | 435 | 1181 | 51 |
All measurements in millimetres unless marked (°) for angles.
