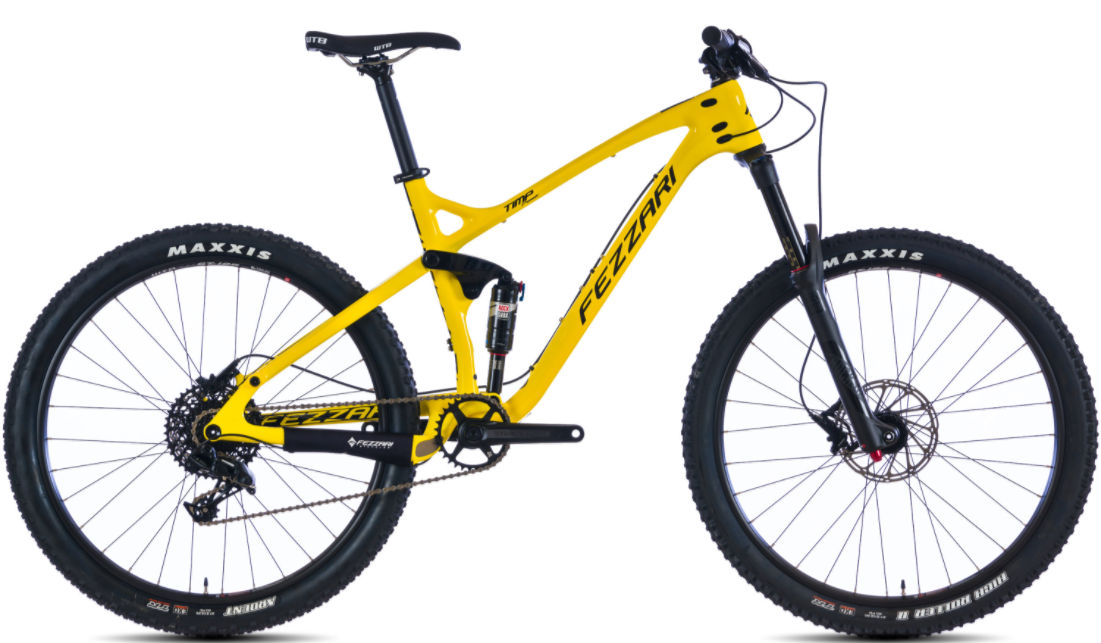

2017 Fezzari Timp Peak geometry
Full frame geometry for the 2017 Fezzari Timp Peak, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| 16 | 596 | 404 | 72.5 | 67 | 115 | 559 | 438 | 1133 |
| 18 | 599 | 428 | 72.5 | 67 | 120 | 584 | 438 | 1158 |
| 20 | 609 | 451 | 72.5 | 67 | 130 | 610 | 438 | 1186 |
All measurements in millimetres unless marked (°) for angles.
