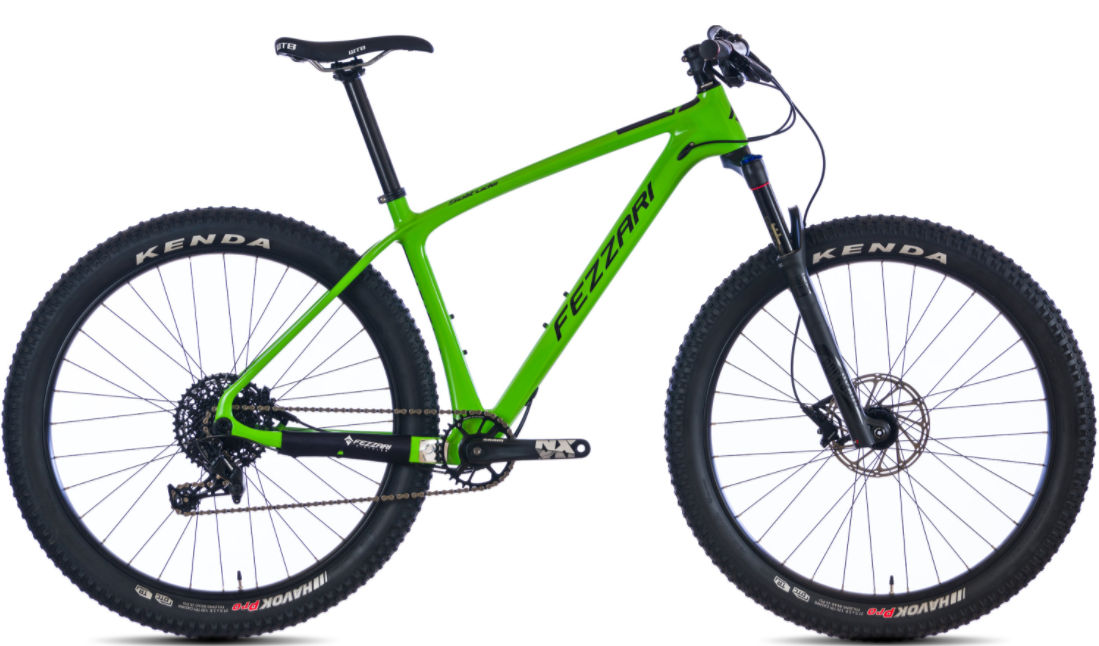

2018 Fezzari Solitude geometry
Full frame geometry for the 2018 Fezzari Solitude, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 16 | 603 | 363 | 70.5 | 68.5 | 110 | 555 | 52 | 425 | 1056 |
| 18 | 604 | 406 | 70.5 | 68.5 | 111 | 596 | 52 | 425 | 1089 |
| 20 | 612 | 436 | 70.5 | 68.5 | 120 | 620 | 52 | 425 | 1134 |
All measurements in millimetres unless marked (°) for angles.
