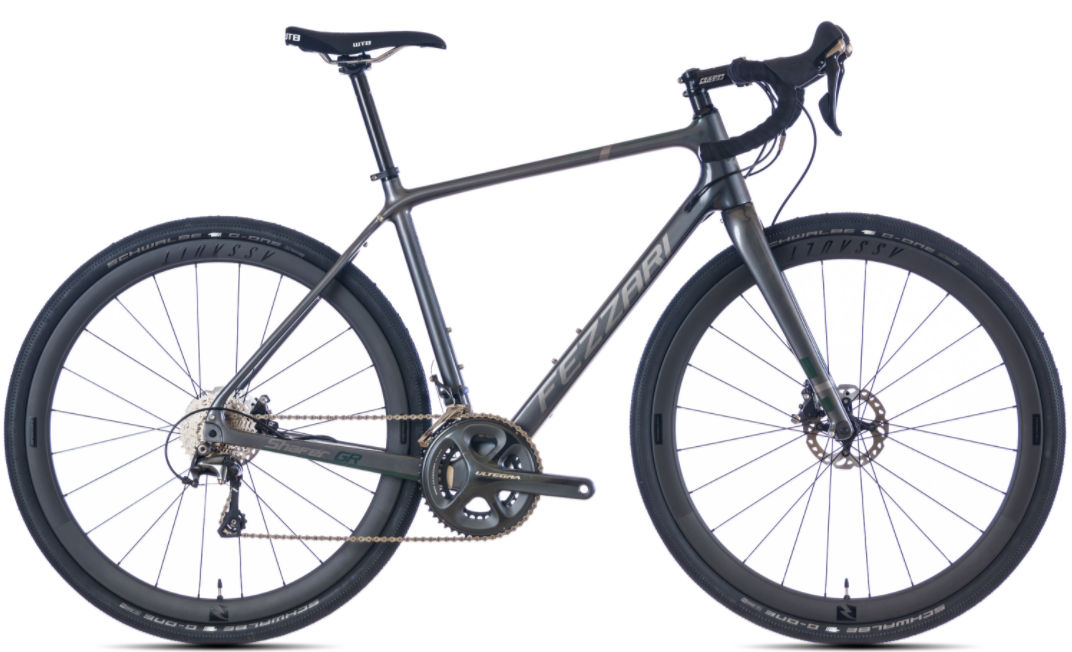

2018 Fezzari Shafer geometry
Full frame geometry for the 2018 Fezzari Shafer, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 551 | 366 | 75 | 70.8 | 120 | 515 | 480 | 78 | 440 | 1020 | 52 |
| S | 571 | 365 | 73.5 | 71.2 | 140 | 535 | 500 | 75 | 440 | 1022 | 52 |
| M | 587 | 371 | 73 | 71.5 | 155 | 550 | 520 | 75 | 440 | 1030 | 52 |
| L | 607 | 373 | 72.5 | 71.5 | 180 | 565 | 540 | 72 | 440 | 1040 | 52 |
| XL | 623 | 384 | 72.5 | 71.5 | 195 | 580 | 560 | 72 | 440 | 1053 | 52 |
All measurements in millimetres unless marked (°) for angles.
