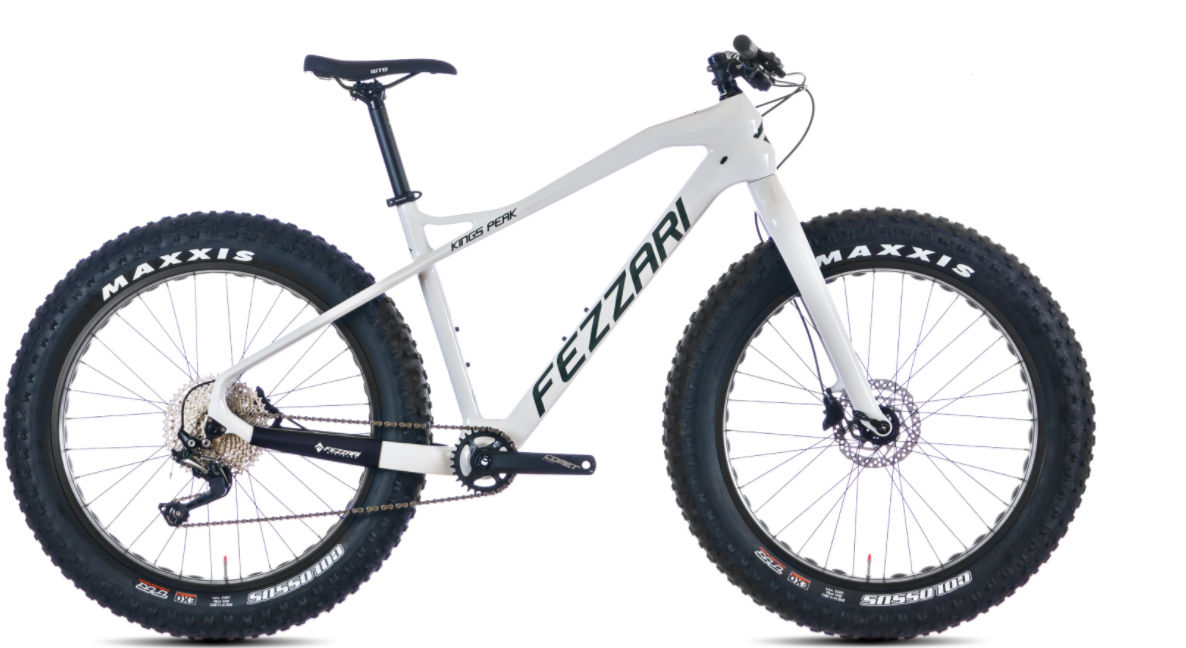

2018 Fezzari Kings Peak geometry
Full frame geometry for the 2018 Fezzari Kings Peak, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|
| M | 611 | 413 | 73 | 69.8 | 600 | 468 | 1126 |
| L | 625 | 429 | 73 | 69.8 | 620 | 468 | 1146 |
All measurements in millimetres unless marked (°) for angles.
