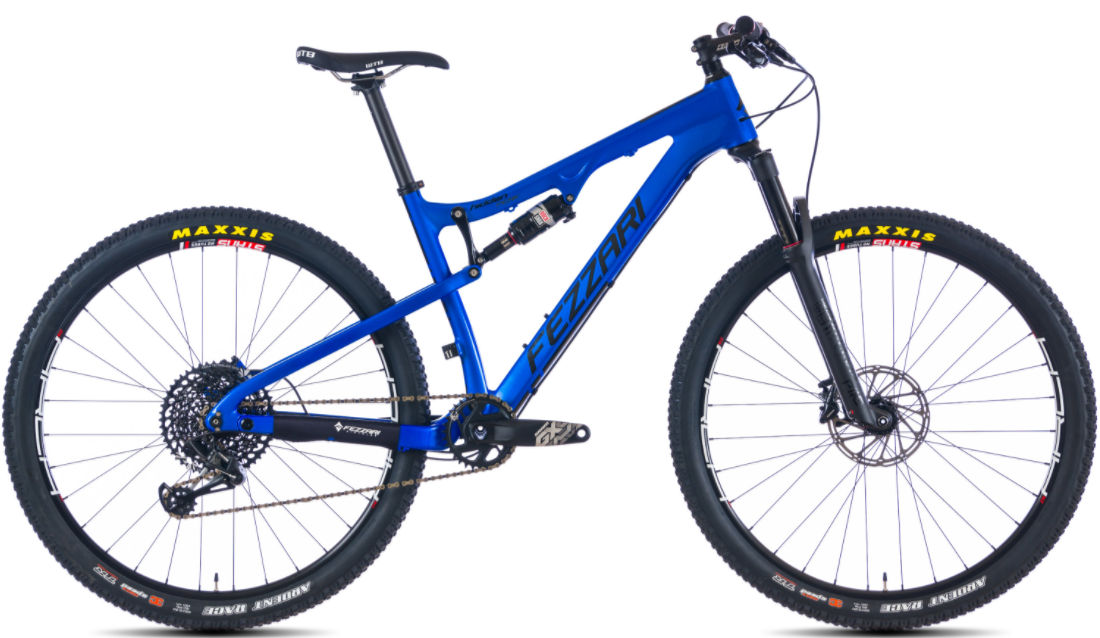

2018 Fezzari Hidden Peak geometry
Full frame geometry for the 2018 Fezzari Hidden Peak, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 592 | 412 | 73.5 | 69.9 | 108 | 586 | 30 | 455 | 1117 |
| M | 601 | 425 | 73.5 | 69.9 | 118 | 603 | 30 | 455 | 1134 |
| L | 610 | 441 | 73.5 | 69.9 | 128 | 622 | 30 | 455 | 1153 |
| XL | 620 | 457 | 73.5 | 69.9 | 138 | 641 | 30 | 455 | 1173 |
All measurements in millimetres unless marked (°) for angles.
