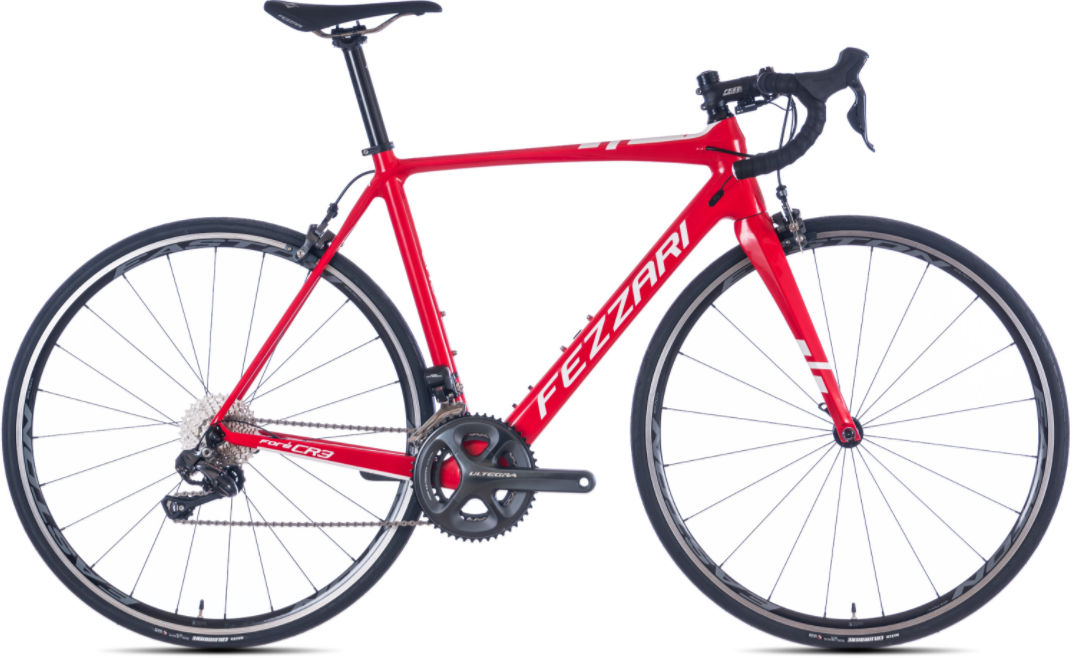

2017 Fezzari Fore geometry
Full frame geometry for the 2017 Fezzari Fore, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 511 | 378 | 75 | 71 | 116 | 515 | 490 | 67 | 405 | 978 | 45 |
| 52 | 534 | 382 | 74.5 | 72 | 136 | 530 | 520 | 67 | 405 | 980 | 45 |
| 54 | 556 | 385 | 74 | 73 | 156 | 545 | 540 | 67 | 405 | 981 | 45 |
| 56 | 575 | 390 | 74 | 73 | 176 | 560 | 560 | 67 | 405 | 992 | 45 |
| 58 | 594 | 397 | 73 | 73 | 196 | 575 | 580 | 67 | 405 | 1004 | 45 |
| 61 | 617 | 406 | 73 | 74 | 216 | 595 | 610 | 67 | 405 | 1010 | 45 |
All measurements in millimetres unless marked (°) for angles.
