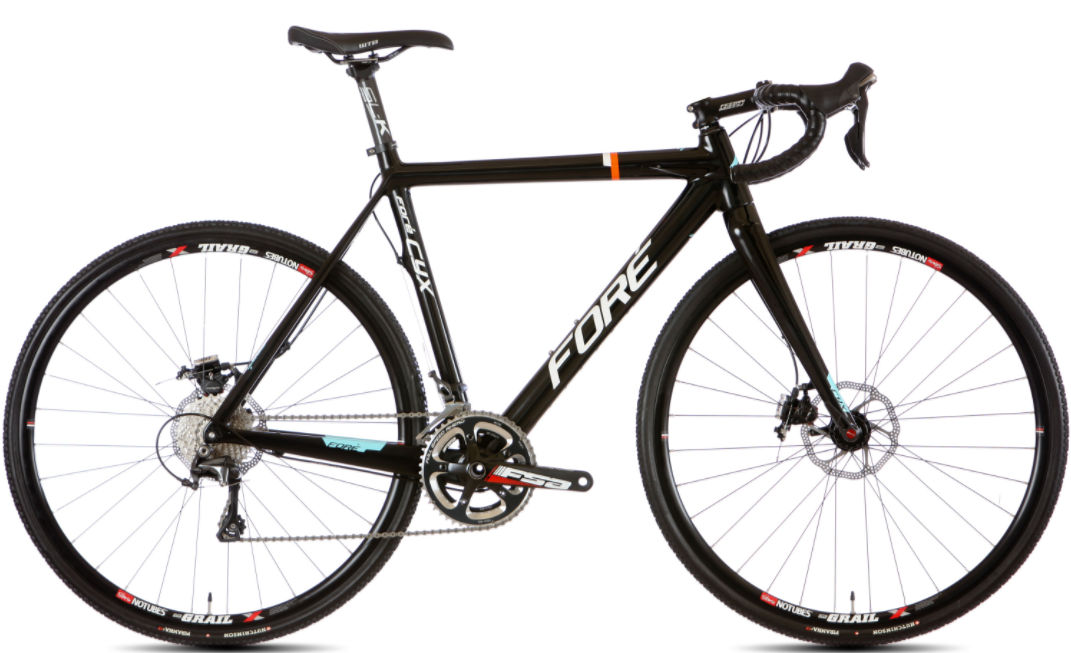

2017 Fezzari Fore Cyx geometry
Full frame geometry for the 2017 Fezzari Fore Cyx, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 528 | 366 | 74.3 | 71 | 115 | 515 | 520 | 60 | 425 | 1003 | 45 |
| S | 538 | 376 | 74 | 71 | 125 | 530 | 540 | 60 | 425 | 1016 | 45 |
| M | 559 | 380 | 73.5 | 71.5 | 145 | 545 | 560 | 60 | 425 | 1021 | 45 |
| L | 580 | 378 | 73 | 72 | 165 | 555 | 580 | 60 | 425 | 1024 | 45 |
| XL | 588 | 388 | 72.3 | 72 | 185 | 565 | 600 | 60 | 425 | 1044 | 45 |
All measurements in millimetres unless marked (°) for angles.
