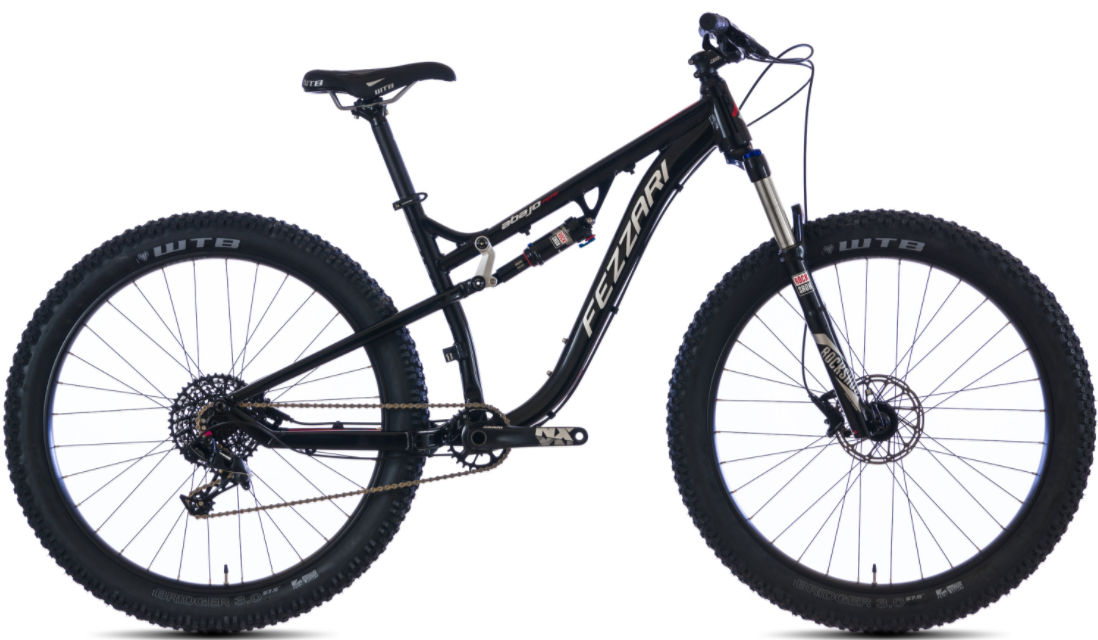

2017 Fezzari Abajo Peak MK I geometry
Full frame geometry for the 2017 Fezzari Abajo Peak MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 611 | 397 | 73.3 | 69 | 100 | 580 | 37 | 447 | 1119 |
| M | 621 | 414 | 73.3 | 69 | 110 | 600 | 37 | 447 | 1139 |
| L | 630 | 431 | 73.3 | 69 | 120 | 620 | 37 | 447 | 1162 |
| XL | 639 | 448 | 73.3 | 69 | 130 | 640 | 37 | 447 | 1182 |
All measurements in millimetres unless marked (°) for angles.
