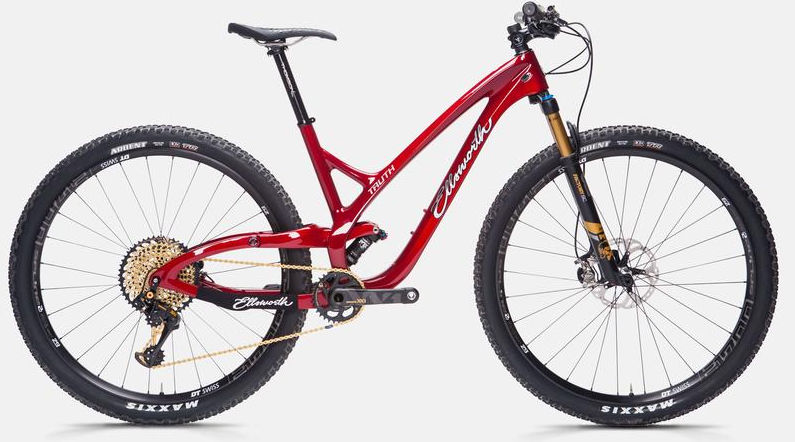

2018 Ellsworth Truth 100mm geometry
Full frame geometry for the 2018 Ellsworth Truth 100mm, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 585 | 420 | 75.5 | 69 | 98 | 572 | 381 | 629 | 683 | 435 | 1118 |
| M | 594 | 445 | 75.5 | 69 | 109 | 600 | 432 | 629 | 712 | 435 | 1147 |
| L | 604 | 469 | 75.5 | 69 | 120 | 627 | 483 | 629 | 741 | 435 | 1176 |
All measurements in millimetres unless marked (°) for angles.
