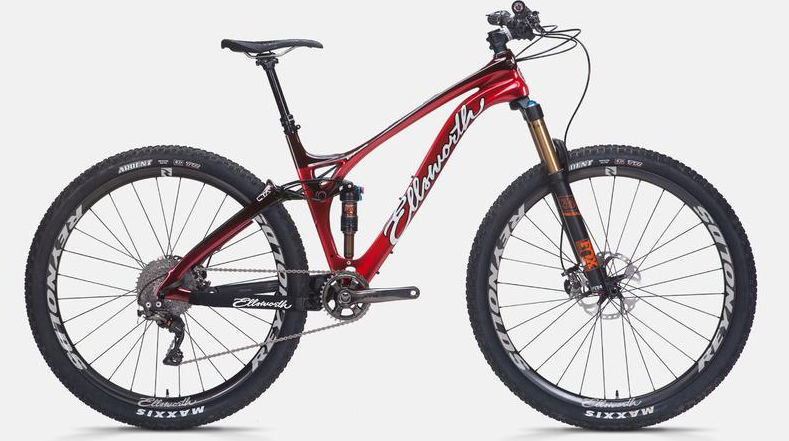

2018 Ellsworth Epiphany Convert geometry
Full frame geometry for the 2018 Ellsworth Epiphany Convert, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 612 | 385 | 73 | 69 | 108 | 585 | 406 | 756 | 656 | 466 | 1122 |
| M | 625 | 405 | 73 | 69 | 122 | 610 | 457 | 768 | 682 | 466 | 1148 |
| L | 626 | 431 | 73 | 69 | 123 | 636 | 508 | 777 | 707 | 462 | 1173 |
All measurements in millimetres unless marked (°) for angles.
