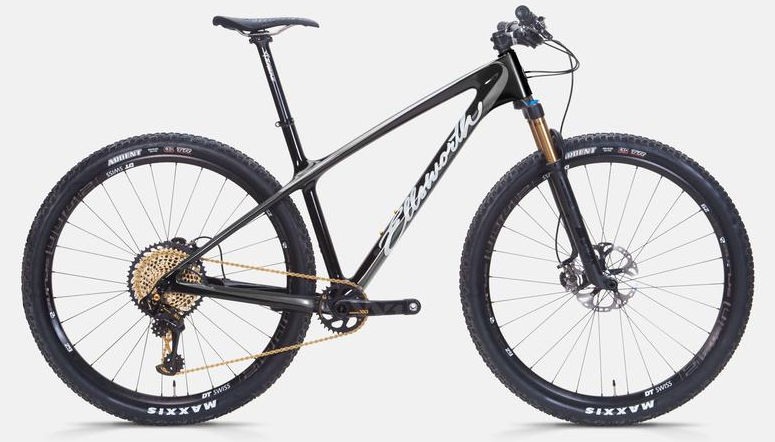

2018 Ellsworth Enlightenment geometry
Full frame geometry for the 2018 Ellsworth Enlightenment, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 615 | 381 | 72.5 | 70 | 105 | 575 | 432 | 698 | 637 | 436 | 1073 |
| M | 624 | 403 | 72.5 | 70 | 115 | 600 | 482 | 708 | 663 | 436 | 1099 |
| L | 634 | 415 | 72.5 | 70 | 125 | 614 | 533 | 718 | 678 | 436 | 1114 |
All measurements in millimetres unless marked (°) for angles.
