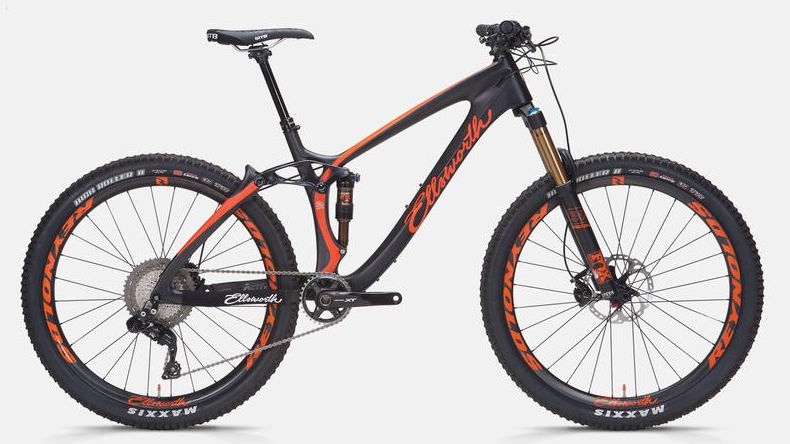

2018 Ellsworth Rogue Forty geometry
Full frame geometry for the 2018 Ellsworth Rogue Forty, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 598 | 441 | 75 | 67 | 129 | 599 | 432 | 698 | 741 | 420 | 1161 |
| L | 614 | 471 | 75 | 67 | 143 | 633 | 483 | 725 | 779 | 420 | 1199 |
| XL | 631 | 499 | 75 | 67 | 157 | 666 | 533 | 752 | 814 | 420 | 1234 |
All measurements in millimetres unless marked (°) for angles.
