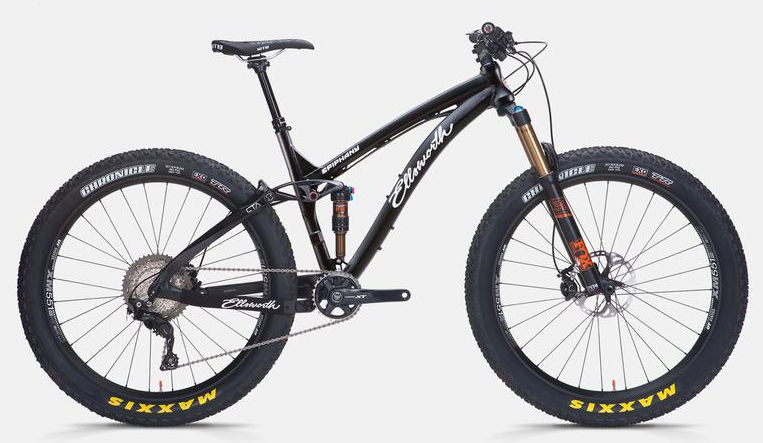

2018 Ellsworth Epiphany Convert Alloy geometry
Full frame geometry for the 2018 Ellsworth Epiphany Convert Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 384 | 73 | 67 | 108 | 587 | 406 | 756 | 693 | 468 | 1161 |
| M | 597 | 401 | 73 | 67 | 108 | 602 | 457 | 768 | 707 | 468 | 1179 |
| L | 613 | 422 | 73 | 67 | 130 | 628 | 508 | 777 | 737 | 468 | 1204 |
All measurements in millimetres unless marked (°) for angles.
