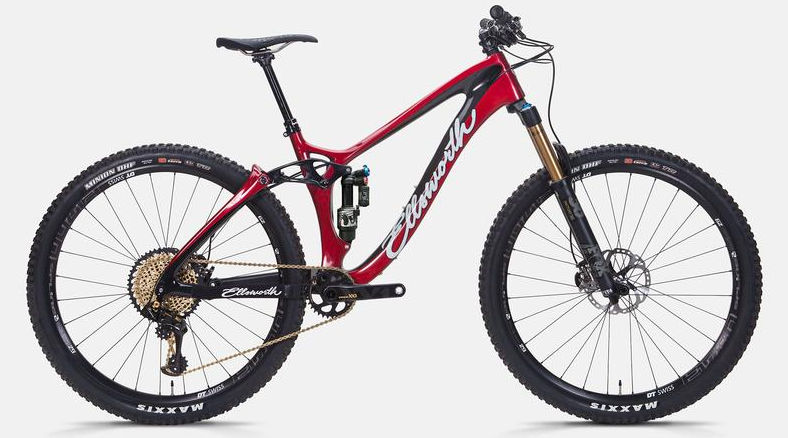

2018 Ellsworth Evolution geometry
Full frame geometry for the 2018 Ellsworth Evolution, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 609 | 426 | 74 | 66 | 129 | 596 | 432 | 739 | 754 | 436 | 1190 |
| L | 625 | 455 | 74 | 66 | 143 | 638 | 483 | 748 | 790 | 436 | 1226 |
| XL | 642 | 486 | 74 | 66 | 157 | 680 | 533 | 756 | 825 | 436 | 1261 |
All measurements in millimetres unless marked (°) for angles.
