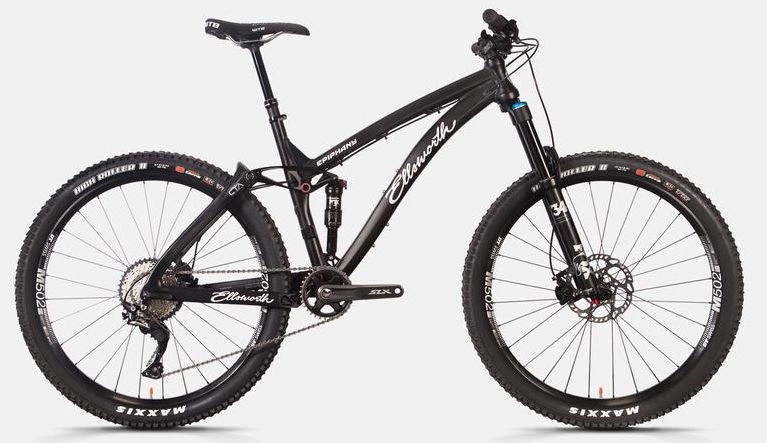

2018 Ellsworth Epiphany Alloy geometry
Full frame geometry for the 2018 Ellsworth Epiphany Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 586 | 400 | 73 | 68 | 108 | 583 | 406 | 776 | 688 | 440 | 1128 |
| M | 589 | 414 | 73 | 68 | 108 | 598 | 457 | 779 | 702 | 440 | 1146 |
| L | 605 | 434 | 73 | 68 | 130 | 624 | 508 | 780 | 731 | 440 | 1171 |
All measurements in millimetres unless marked (°) for angles.
