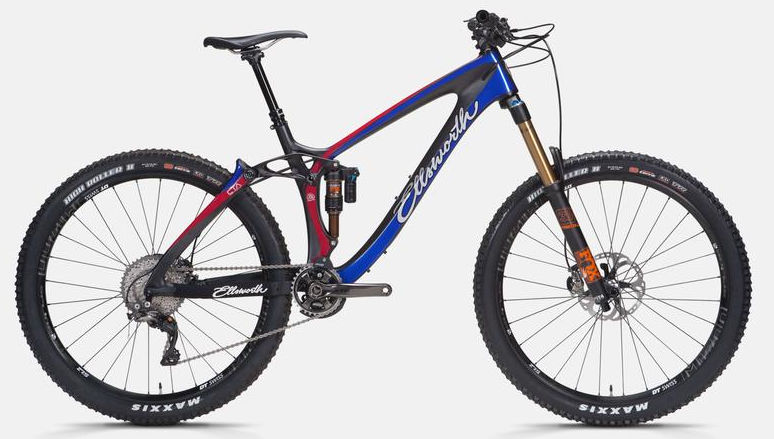

2018 Ellsworth Rogue Sixty geometry
Full frame geometry for the 2018 Ellsworth Rogue Sixty, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 605 | 432 | 74 | 66 | 129 | 600 | 432 | 705 | 749 | 420 | 1169 |
| L | 621 | 462 | 74 | 66 | 143 | 634 | 483 | 732 | 787 | 420 | 1207 |
| XL | 638 | 490 | 74 | 66 | 157 | 667 | 533 | 759 | 821 | 420 | 1241 |
All measurements in millimetres unless marked (°) for angles.
