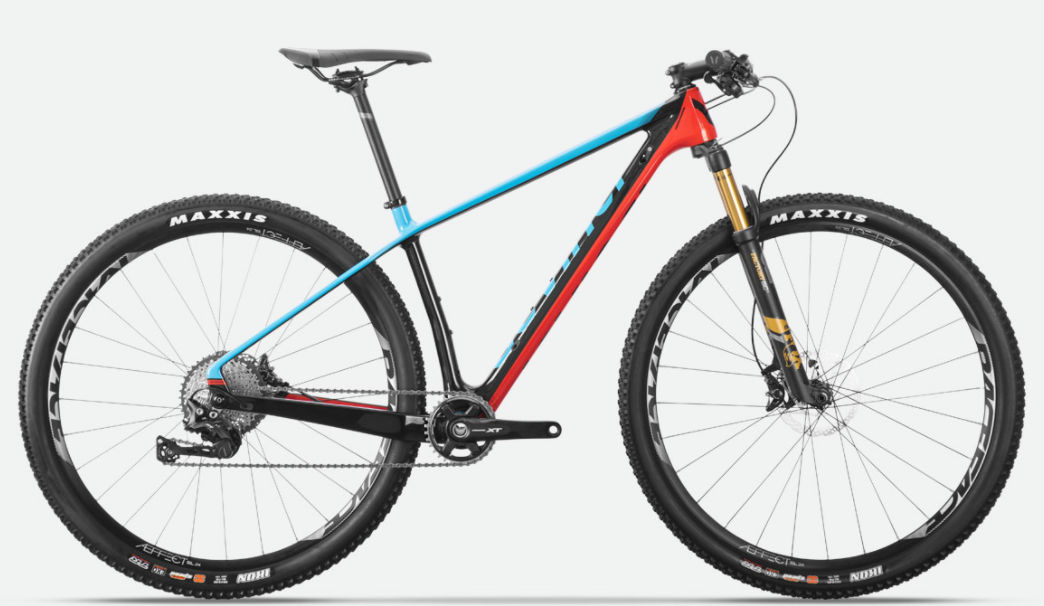

2018 Devinci Wooky geometry
Full frame geometry for the 2018 Devinci Wooky, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 602 | 385 | 73 | 70.2 | 90 | 570 | 390 | 700 | 437 | 1064 |
| M | 611 | 408 | 73 | 70.2 | 100 | 595 | 430 | 728 | 437 | 1089 |
| L | 621 | 430 | 73 | 70.2 | 110 | 620 | 470 | 762 | 437 | 1115 |
| XL | 631 | 452 | 73 | 70.2 | 120 | 645 | 510 | 795 | 437 | 1140 |
All measurements in millimetres unless marked (°) for angles.
