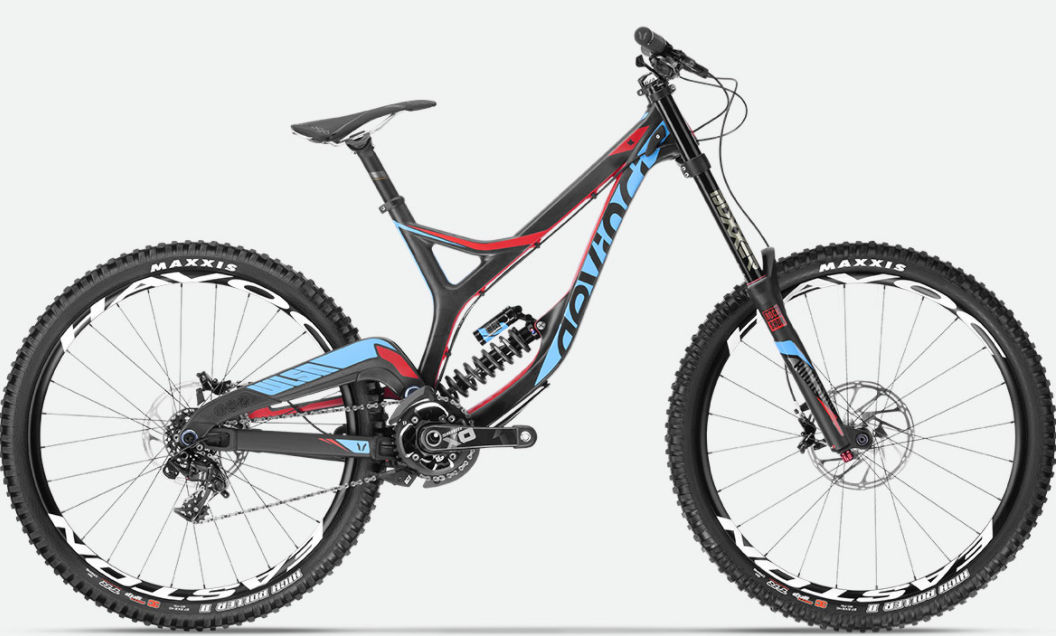

2017 Devinci Wilson Carbon geometry
Full frame geometry for the 2017 Devinci Wilson Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| L | 594 | 436 | 72.5 | 63.2 | 100 | 599 | 445 | 730 | 435 | 1222 |
| M | 594 | 411 | 72.5 | 63.2 | 100 | 574 | 432 | 730 | 435 | 1197 |
| S | 594 | 391 | 72.5 | 63.2 | 100 | 554 | 406 | 730 | 435 | 1177 |
| XL | 594 | 451 | 72.5 | 63.2 | 100 | 614 | 457 | 730 | 435 | 1237 |
All measurements in millimetres unless marked (°) for angles.
