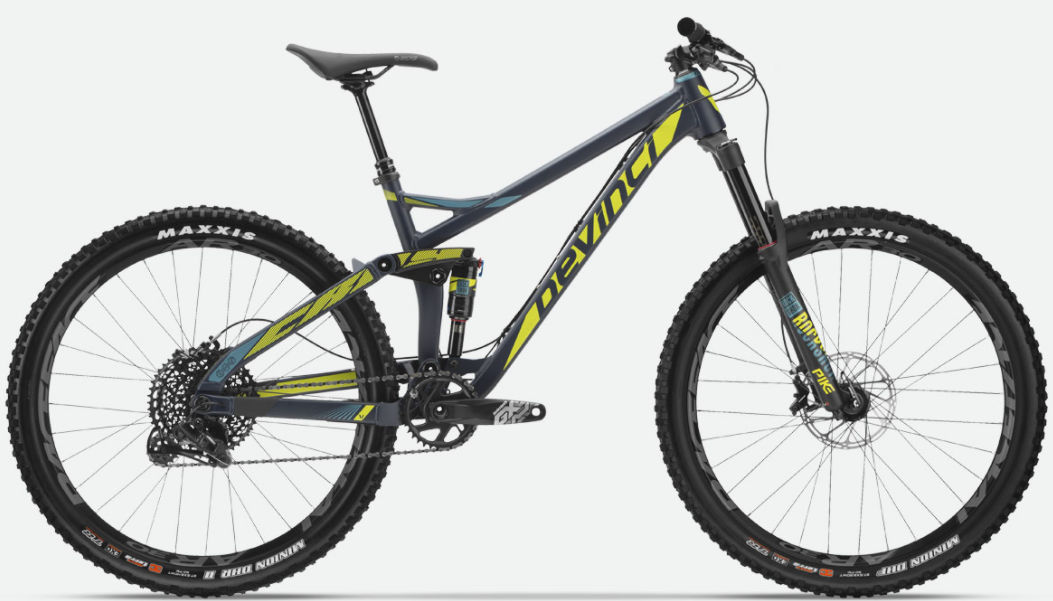

2018 Devinci Troy geometry
Full frame geometry for the 2018 Devinci Troy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 420 | 74.5 | 67 | 105 | 579 | 410 | 709 | 426 | 1138 |
| M | 609 | 440 | 74.5 | 67 | 115 | 602 | 435 | 720 | 426 | 1162 |
| L | 618 | 460 | 74.5 | 67 | 125 | 626 | 470 | 733 | 426 | 1186 |
| XL | 632 | 480 | 74.5 | 67 | 140 | 651 | 500 | 747 | 426 | 1211 |
All measurements in millimetres unless marked (°) for angles.
