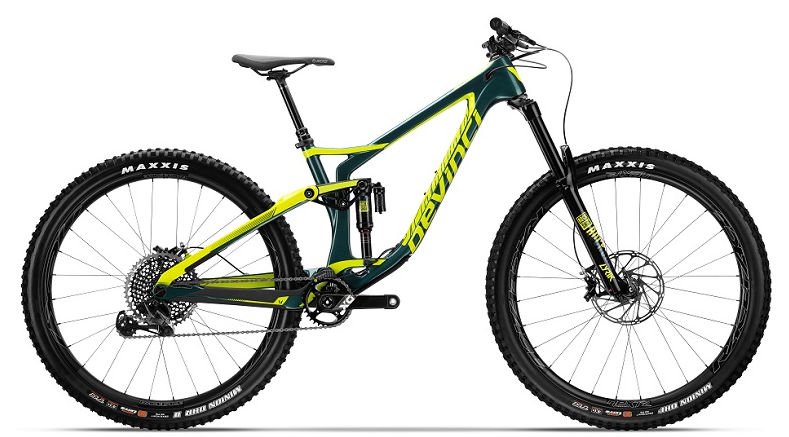

2018 Devinci Spartan 29 Carbon geometry
Full frame geometry for the 2018 Devinci Spartan 29 Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S-Low | 630 | 425 | 76 | 65 | 100 | 568 | 400 | 740 | 432 | 1184 |
| S-High | 635 | 433 | 76.5 | 65.6 | 100 | 565 | 400 | 743 | 430 | 1183 |
| M-Low | 639 | 445 | 76 | 65 | 110 | 592 | 425 | 748 | 432 | 1208 |
| L-Low | 644 | 465 | 76 | 65 | 115 | 615 | 460 | 754 | 432 | 1232 |
| M-High | 644 | 453 | 76.5 | 65.6 | 110 | 589 | 425 | 751 | 430 | 1207 |
| L-High | 649 | 473 | 76.5 | 65.6 | 115 | 612 | 460 | 757 | 430 | 1231 |
| XL (Low) | 653 | 485 | 76 | 65 | 125 | 639 | 495 | 768 | 432 | 1257 |
| XL (High) | 658 | 493 | 76.5 | 65.6 | 125 | 636 | 495 | 771 | 430 | 1256 |
All measurements in millimetres unless marked (°) for angles.
