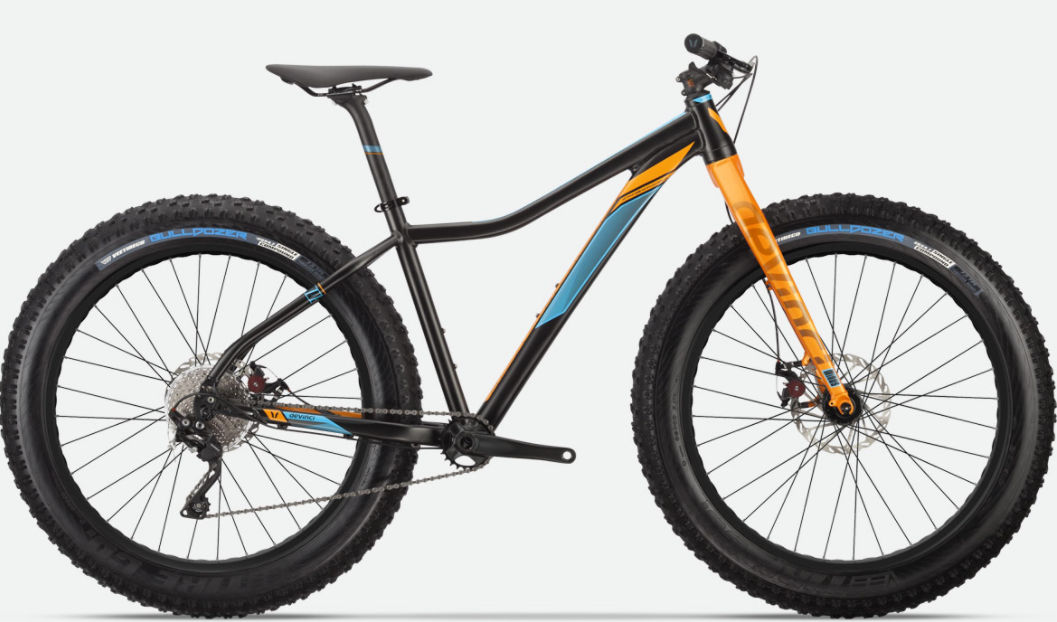

2017 Devinci Minus geometry
Full frame geometry for the 2017 Devinci Minus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 588 | 395 | 73 | 70 | 100 | 575 | 400 | 688 | 455 | 1092 |
| M | 597 | 418 | 73 | 70 | 110 | 600 | 435 | 714 | 455 | 1117 |
| L | 607 | 440 | 73 | 70 | 120 | 625 | 470 | 742 | 455 | 1143 |
All measurements in millimetres unless marked (°) for angles.
