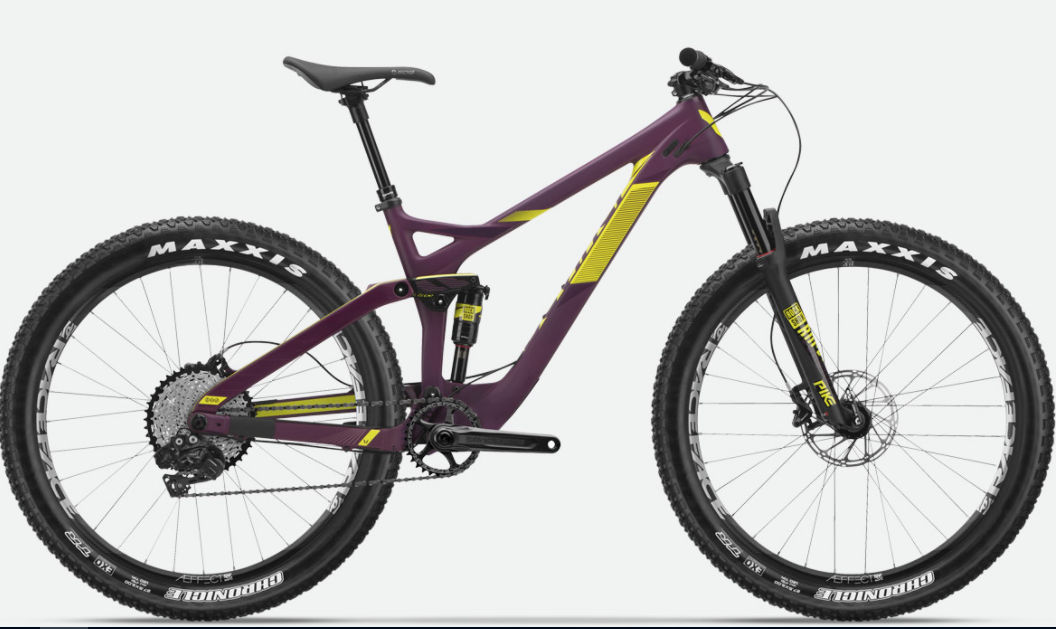

2018 Devinci Marshall Carbon geometry
Full frame geometry for the 2018 Devinci Marshall Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 597 | 422 | 74.8 | 67.3 | 105 | 578 | 410 | 708 | 435 | 1150 |
| M | 606 | 442 | 74.8 | 67.3 | 115 | 602 | 435 | 718 | 435 | 1174 |
| L | 616 | 462 | 74.8 | 67.3 | 125 | 625 | 470 | 732 | 435 | 1197 |
| XL | 629 | 482 | 74.8 | 67.3 | 140 | 650 | 500 | 745 | 435 | 1223 |
All measurements in millimetres unless marked (°) for angles.
