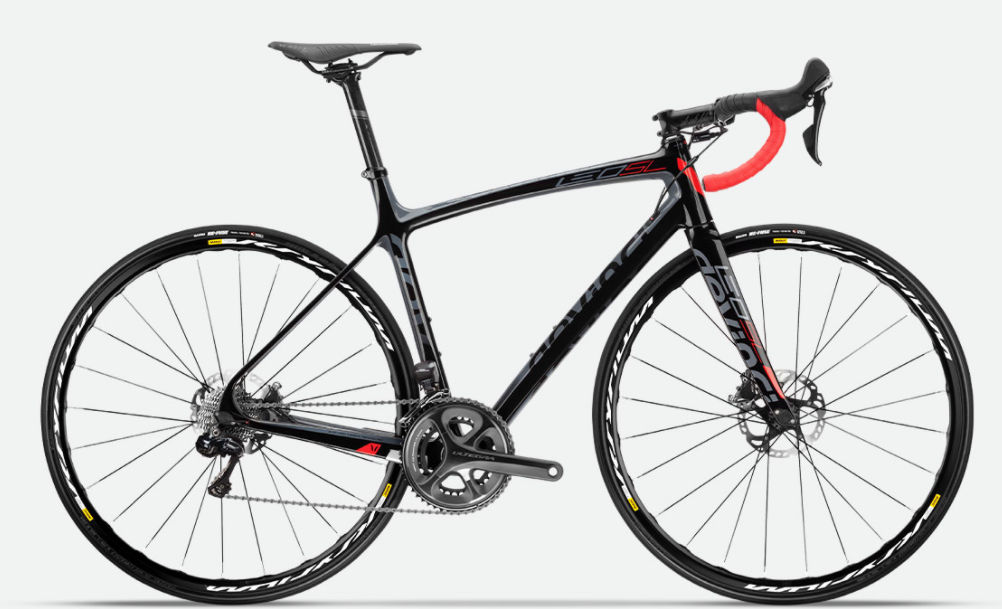

2017 Devinci Leo SL Disc geometry
Full frame geometry for the 2017 Devinci Leo SL Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S/52 | 528 | 378 | 75 | 72 | 130 | 520 | 470 | 690 | 410 | 978 |
| M/54 | 555 | 381 | 74 | 73 | 155 | 540 | 520 | 725 | 410 | 980 |
| L /57 | 579 | 389 | 73.5 | 73 | 180 | 560 | 560 | 760 | 410 | 995 |
| XL/60 | 612 | 389 | 73 | 73 | 215 | 585 | 600 | 800 | 410 | 1015 |
All measurements in millimetres unless marked (°) for angles.
