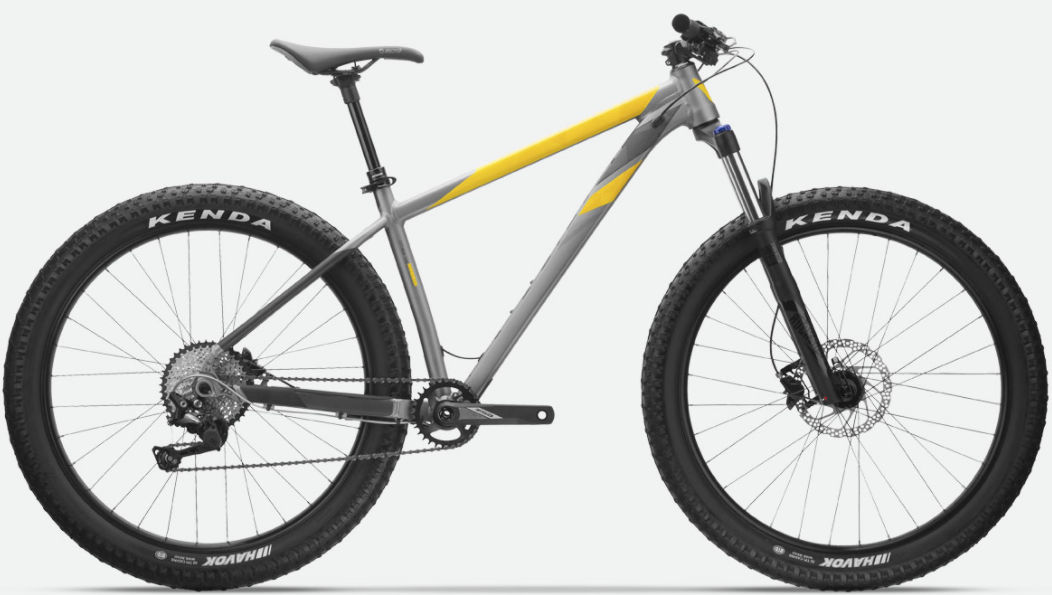

2018 Devinci Kobain geometry
Full frame geometry for the 2018 Devinci Kobain, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 615 | 422 | 73 | 67 | 105 | 610 | 430 | 751 | 430 | 1144 |
| S | 615 | 402 | 73 | 67 | 105 | 590 | 405 | 728 | 430 | 1124 |
| L | 620 | 440 | 73 | 67 | 110 | 630 | 470 | 776 | 430 | 1165 |
| XL | 629 | 458 | 73 | 67 | 120 | 650 | 500 | 804 | 430 | 1186 |
All measurements in millimetres unless marked (°) for angles.
