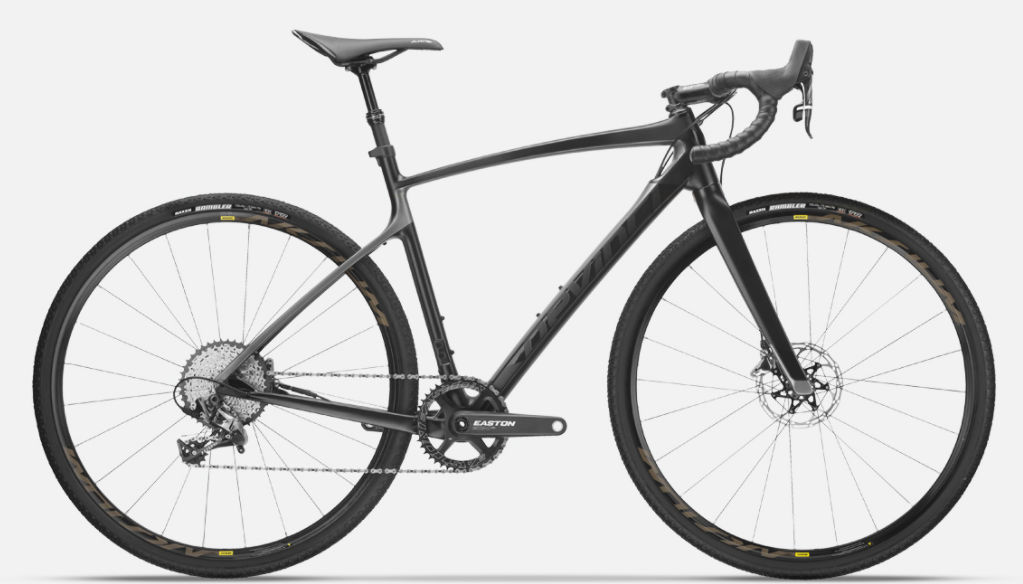

2018 Devinci Hatchet geometry
Full frame geometry for the 2018 Devinci Hatchet, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS/50 | 520 | 385 | 76 | 70 | 100 | 515 | 430 | 676 | 435 | 1026 |
| S/52 | 541 | 390 | 75 | 70.5 | 120 | 535 | 470 | 716 | 435 | 1034 |
| M/54 | 562 | 393 | 74 | 71 | 140 | 555 | 520 | 764 | 435 | 1040 |
| L /57 | 590 | 400 | 73.5 | 71 | 170 | 575 | 560 | 804 | 435 | 1056 |
| XL/60 | 621 | 410 | 73 | 71.5 | 200 | 600 | 600 | 842 | 435 | 1071 |
All measurements in millimetres unless marked (°) for angles.
