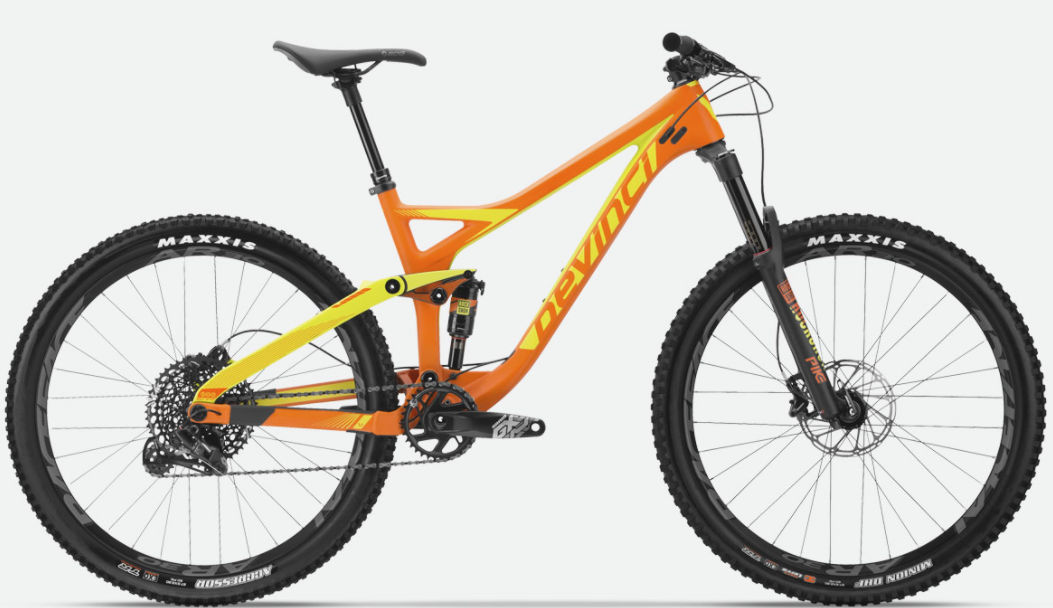

2018 Devinci Django Carbon geometry
Full frame geometry for the 2018 Devinci Django Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 588 | 420 | 74.5 | 67.5 | 105 | 575 | 410 | 698 | 427 | 1128 |
| M | 597 | 440 | 74.5 | 67.5 | 115 | 598 | 435 | 710 | 427 | 1151 |
| L | 606 | 460 | 74.5 | 67.5 | 125 | 622 | 470 | 728 | 427 | 1175 |
| XL | 620 | 480 | 74.5 | 67.5 | 140 | 647 | 500 | 739 | 427 | 1201 |
All measurements in millimetres unless marked (°) for angles.
