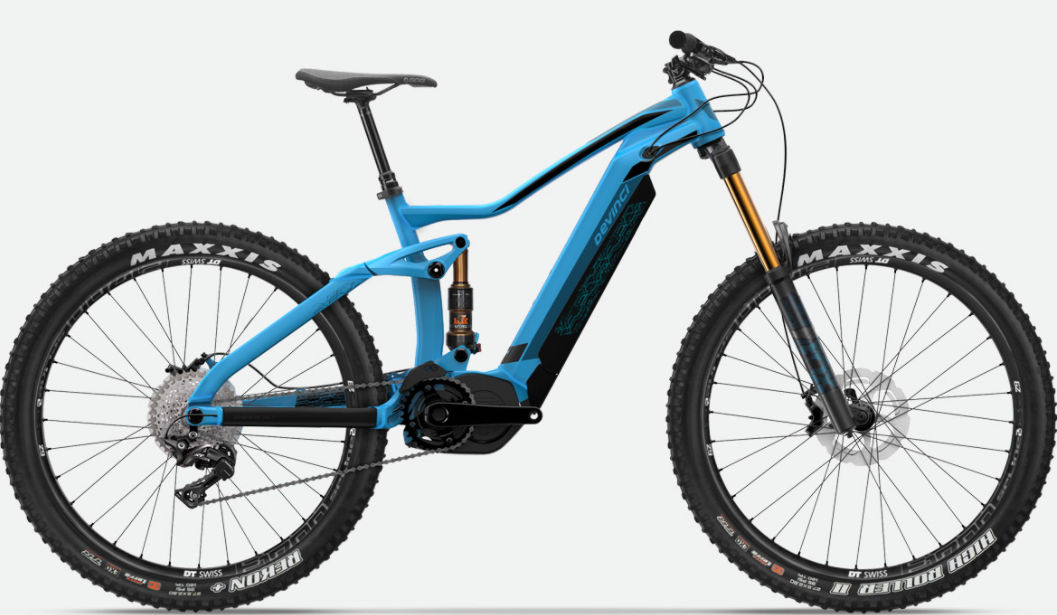

2018 Devinci DC geometry
Full frame geometry for the 2018 Devinci DC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 594 | 425 | 74.5 | 66 | 105 | 580 | 410 | 708 | 451 | 1186 |
| M | 603 | 445 | 74.5 | 66 | 115 | 604 | 420 | 731 | 451 | 1210 |
| L | 612 | 465 | 74.5 | 66 | 125 | 627 | 455 | 756 | 451 | 1234 |
| XL | 626 | 485 | 74.5 | 66 | 140 | 652 | 495 | 785 | 451 | 1260 |
All measurements in millimetres unless marked (°) for angles.
