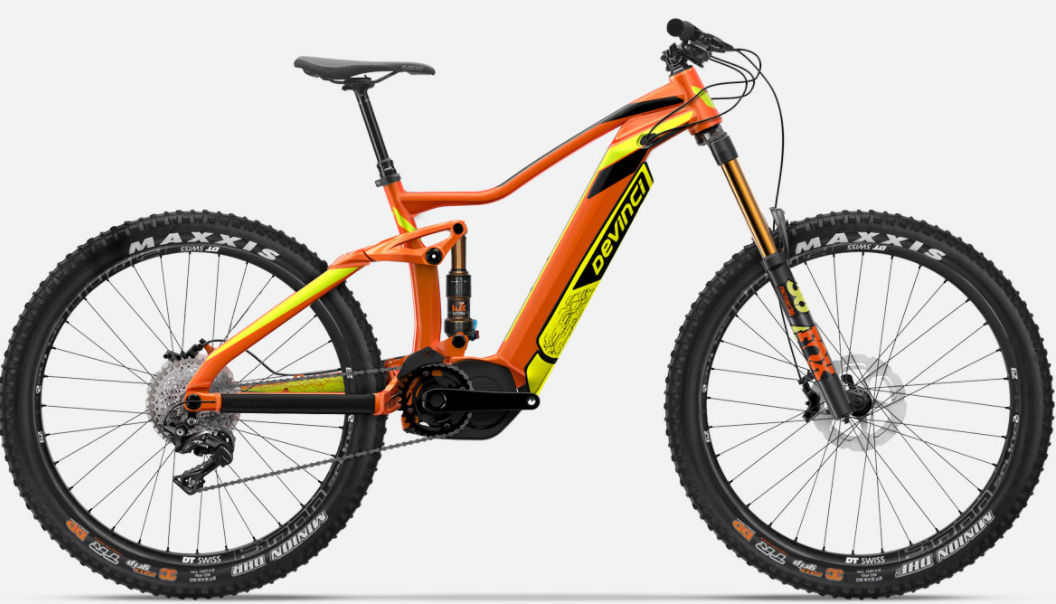

2018 Devinci AC geometry
Full frame geometry for the 2018 Devinci AC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 598 | 430 | 75 | 65.5 | 105 | 582 | 410 | 733 | 448 | 1203 |
| M | 611 | 445 | 74.5 | 65 | 115 | 607 | 420 | 738 | 450 | 1228 |
| L | 620 | 465 | 74.5 | 65 | 125 | 630 | 455 | 764 | 450 | 1252 |
| XL | 626 | 485 | 74.5 | 66 | 140 | 652 | 495 | 785 | 451 | 1260 |
All measurements in millimetres unless marked (°) for angles.
