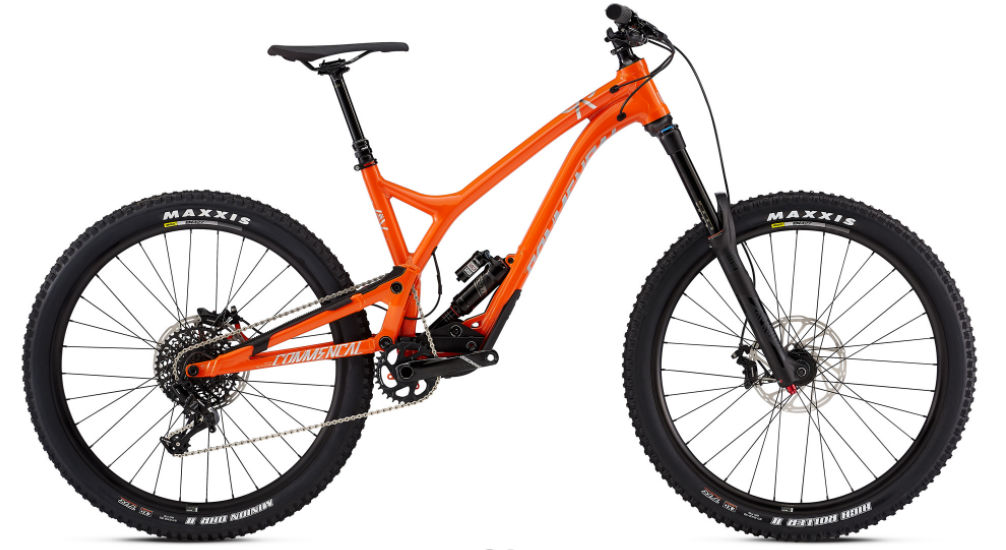

2018 Commencal Supreme SX geometry
Full frame geometry for the 2018 Commencal Supreme SX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 610 | 422 | 75 | 65 | 115 | 575 | 400 | 700 | 10 | 425 | 1174 |
| M | 615 | 442 | 75 | 65 | 120 | 596 | 420 | 710 | 10 | 425 | 1196 |
| L | 620 | 467 | 75 | 65 | 125 | 622 | 470 | 720 | 10 | 425 | 1223 |
| XL | 625 | 492 | 75 | 65 | 130 | 649 | 500 | 730 | 10 | 425 | 1236 |
All measurements in millimetres unless marked (°) for angles.
