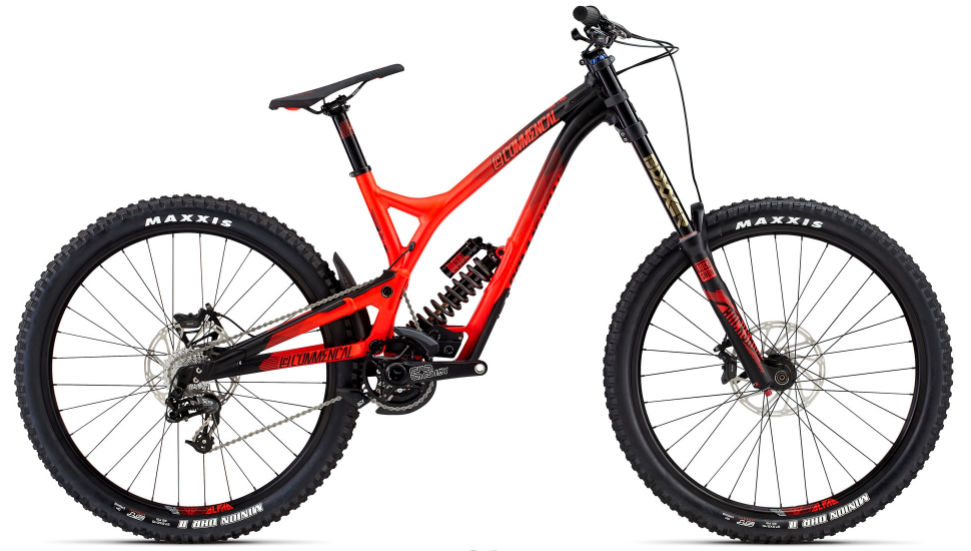

2016 Commencal Supreme DH V4 geometry
Full frame geometry for the 2016 Commencal Supreme DH V4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 607 | 407 | 66 | 63 | 118 | 577 | 400 | 703 | 5 | 425 | 1204 |
| M | 607 | 392 | 66 | 63 | 108 | 563 | 400 | 703 | 5 | 425 | 1185 |
| S | 607 | 377 | 66 | 63 | 108 | 547 | 400 | 703 | 5 | 425 | 1168 |
| XL | 607 | 425 | 66 | 63 | 118 | 595 | 400 | 703 | 5 | 425 | 1222 |
All measurements in millimetres unless marked (°) for angles.
