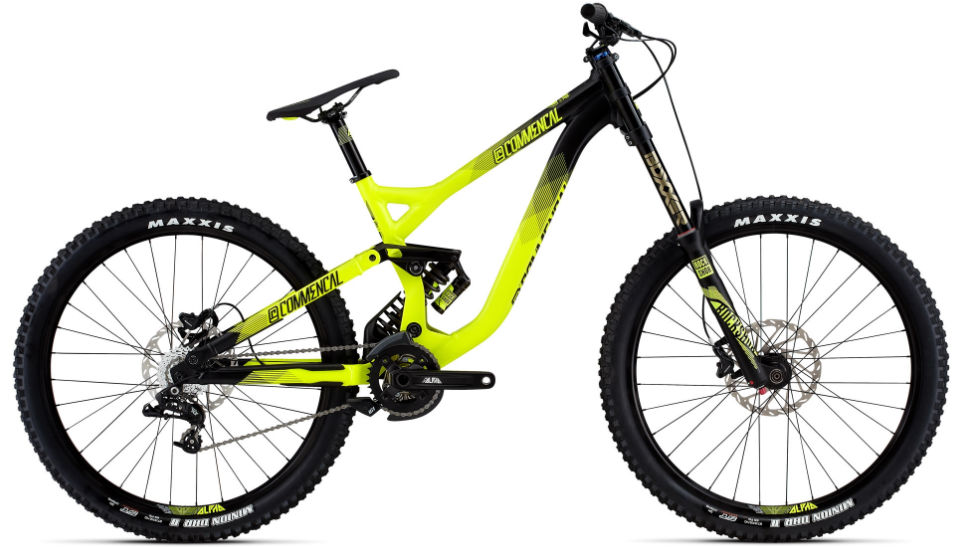

2016 Commencal Supreme DH V3 geometry
Full frame geometry for the 2016 Commencal Supreme DH V3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 592 | 405 | 63.5 | 63.8 | 120 | 606 | 400 | 730 | 7 | 447 | 1208 |
| M | 592 | 392 | 63.5 | 63.8 | 120 | 593 | 400 | 730 | 7 | 447 | 1196 |
| S | 592 | 375 | 63.5 | 63.8 | 120 | 576 | 400 | 730 | 7 | 447 | 1178 |
| XL | 592 | 425 | 63.5 | 63.8 | 120 | 626 | 400 | 730 | 7 | 447 | 1228 |
All measurements in millimetres unless marked (°) for angles.
