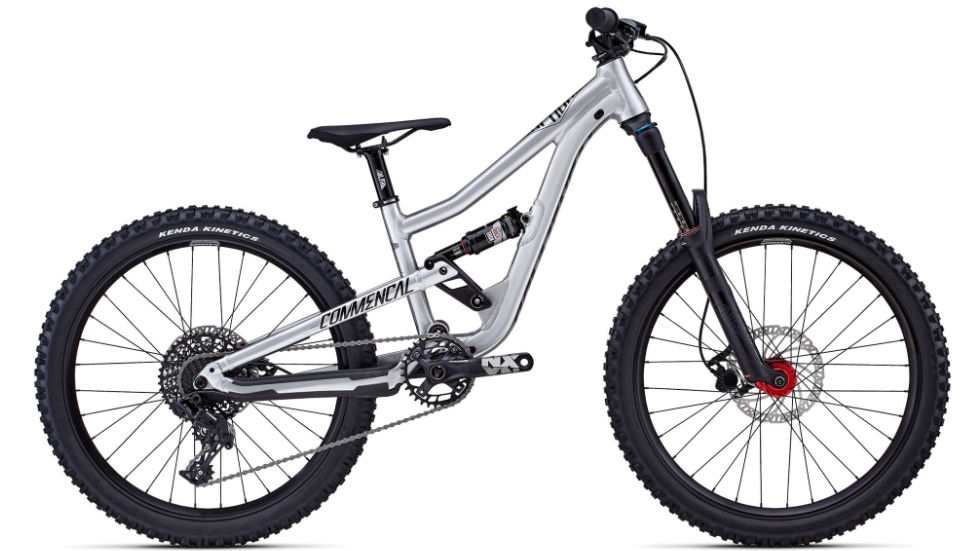

2018 Commencal Supreme 24 geometry
Full frame geometry for the 2018 Commencal Supreme 24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 548 | 313 | 73.5 | 66 | 105 | 476 | 320 | 690 | 12 | 420 | 1026 |
All measurements in millimetres unless marked (°) for angles.
