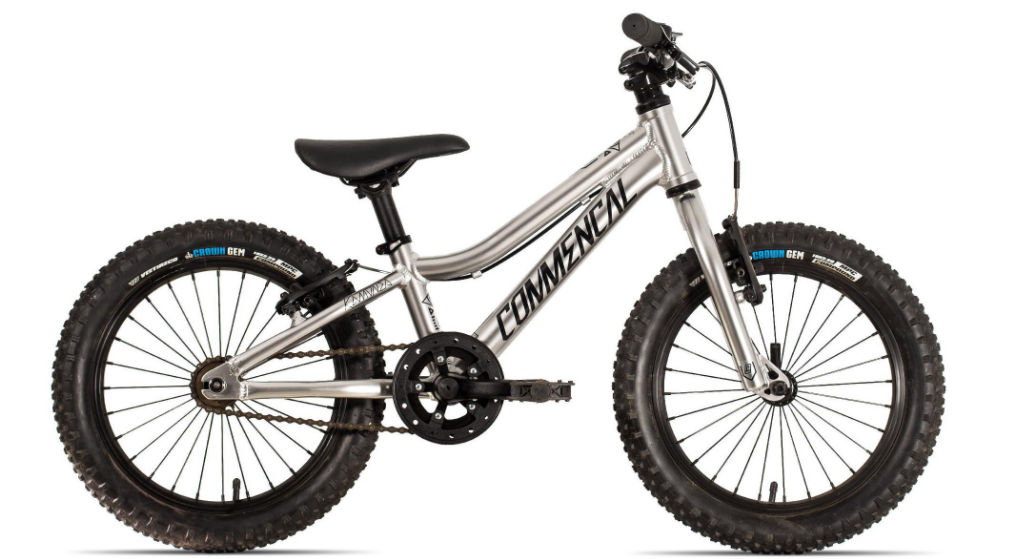

2018 Commencal Ramones 16 geometry
Full frame geometry for the 2018 Commencal Ramones 16, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 345 | 273 | 72 | 70 | 100 | 385 | 195 | 400 | 0 | 285 | 710 |
All measurements in millimetres unless marked (°) for angles.
