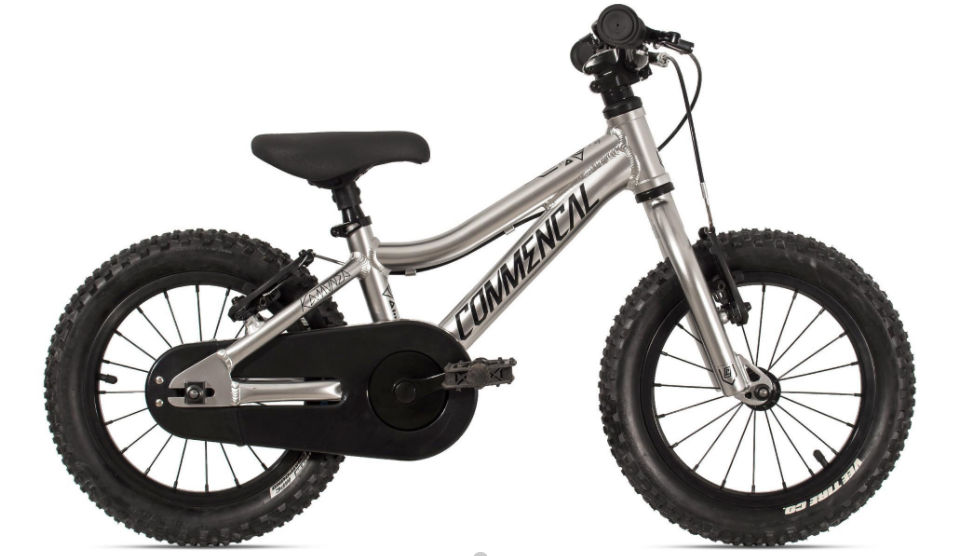

2018 Commencal Ramones 14 geometry
Full frame geometry for the 2018 Commencal Ramones 14, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 316 | 247 | 73 | 70 | 90 | 344 | 195 | 275 | 0 | 240 | 636 |
All measurements in millimetres unless marked (°) for angles.
