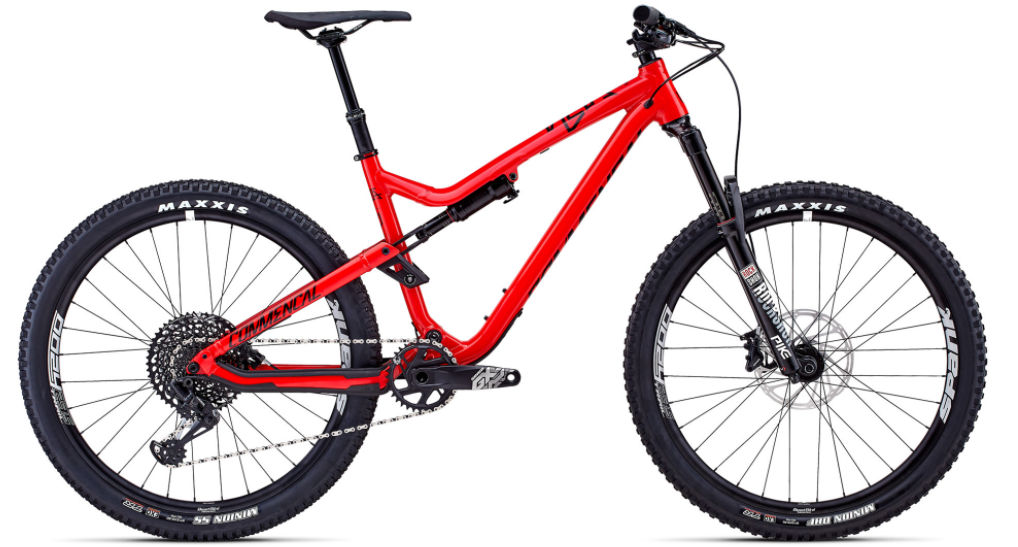

2018 Commencal Meta TR V4.2 geometry
Full frame geometry for the 2018 Commencal Meta TR V4.2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 593 | 415 | 74 | 66.5 | 110 | 580 | 400 | 680 | 25 | 437 | 1144 |
| M | 598 | 435 | 74 | 66.5 | 115 | 607 | 440 | 690 | 25 | 437 | 1166 |
| L | 602 | 460 | 74 | 66.5 | 120 | 627 | 490 | 700 | 25 | 437 | 1193 |
| XL | 607 | 490 | 74 | 66.5 | 125 | 659 | 520 | 735 | 25 | 437 | 1225 |
All measurements in millimetres unless marked (°) for angles.
