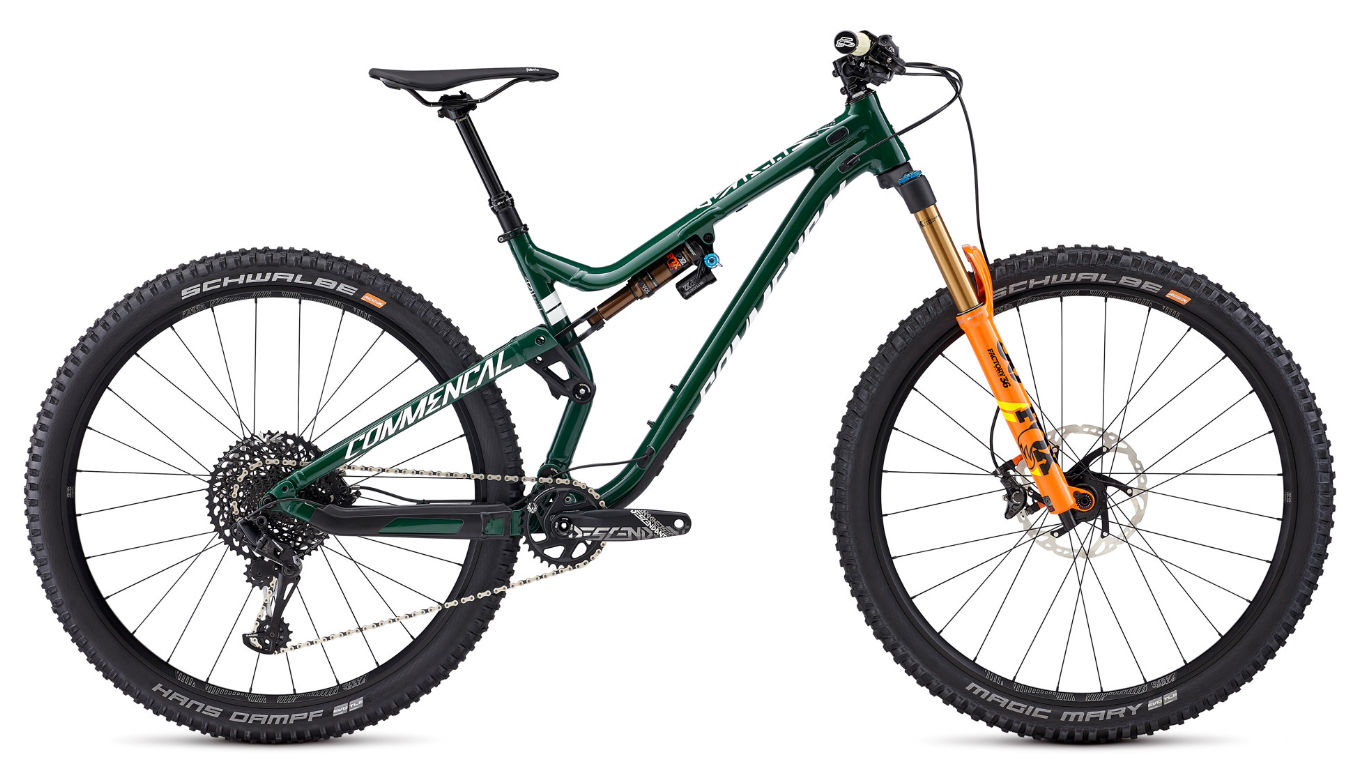

2019 Commencal Meta TR 29 geometry
Full frame geometry for the 2019 Commencal Meta TR 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 616 | 435 | 76.5 | 66.5 | 105 | 582 | 400 | 38 | 434 | 1174 |
| M | 620 | 455 | 76.5 | 66.5 | 110 | 604 | 440 | 38 | 434 | 1196 |
| L | 625 | 475 | 76.5 | 66.5 | 115 | 625 | 465 | 38 | 434 | 1218 |
| XL | 629 | 500 | 76.5 | 66.5 | 120 | 651 | 495 | 38 | 434 | 1245 |
All measurements in millimetres unless marked (°) for angles.
