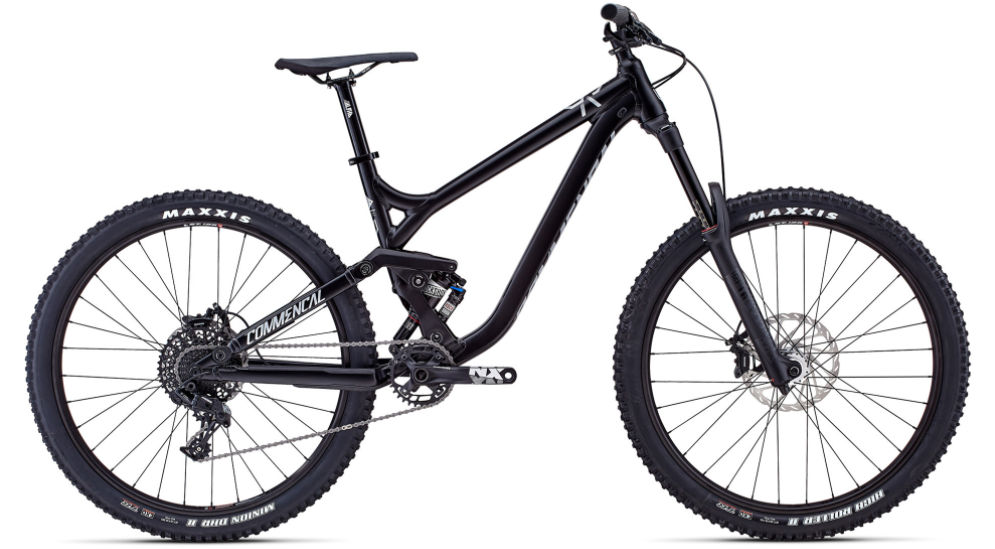

2018 Commencal Meta SX V3 geometry
Full frame geometry for the 2018 Commencal Meta SX V3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 567 | 388 | 73 | 65.5 | 105 | 560 | 400 | 710 | 12 | 439 | 1141 |
| M | 577 | 407 | 73 | 65.5 | 110 | 580 | 440 | 720 | 12 | 439 | 1162 |
| L | 587 | 429 | 73 | 65.5 | 120 | 605 | 490 | 743 | 12 | 439 | 1188 |
| XL | 597 | 451 | 73 | 65.5 | 130 | 630 | 520 | 750 | 12 | 439 | 1215 |
All measurements in millimetres unless marked (°) for angles.
